4-644769-6 | AMP

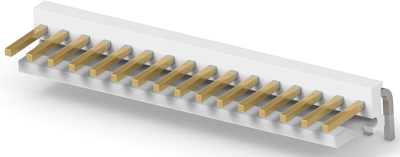

Pin header, 16 pole, pitch 3.96 mm, angled, natural, 4-644769-6
Unit Price (€ / pc.)
9.7580 € *
Available: 0 pcs.
Available in 5 Days: 750 pcs.
Leadtime: 25 Weeks **
Total Price:
243.95 € *
Price list
Quantity
Price per unit*
25 pcs.
9.7580 €
50 pcs.
9.5795 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Header, 4-644769-6, AMP
PCB Mount header, Right angle, Wire-to-Board, 16 Position, 3.96 mm Centerline, Partially shrouded, Gold, Through Hole-Solder.
Technical specifications
| Colour | natural | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Rated current | 7 A | |
| Grid | 3.96 mm | |
| Connection plating | tin-plated | |
| Pin number | 16 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | solder connection | |
| Contact type | pin | |
| Rated voltage | 600 V | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
