4-643818-3 | AMP

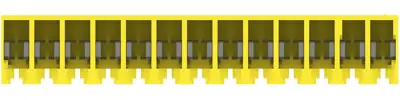

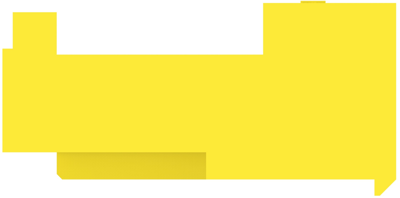

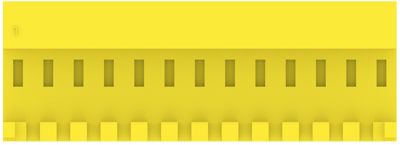

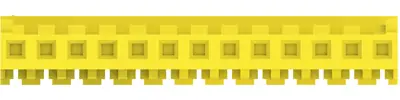

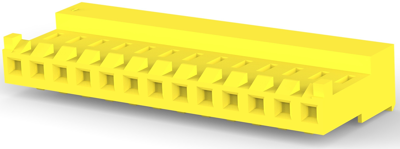

Socket housing, 13 pole, pitch 3.96 mm, straight, yellow, 4-643818-3
Order No.: 35P1423
EAN: 4099889925401
MPN:
4-643818-3
Unit Price (€ / pc.)
0.7259 € *
Available in 5 Days: 450 pcs. - if ordered today
PCB Connection System, 4-643818-3, AMP
Wire-to-Board, Printed Circuit Board, Wire & Cable, 13 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Nylon
- Housing Color: yellow
- Number of positions: 13
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.96 mm | |
| Contact type | socket | |
| Additional parts | equipped | |
| Colour | yellow | |
| Rated current | 7 A | |
| Number of rows | 1 | |
| Connection | IDC connection | |
| Pin number | 13 pole | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | socket housing | |
| Type of locking | Yes | |
| Rated voltage | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
