4-643815-0 | AMP

Socket housing, 10 pole, pitch 2.54 mm, angled, blue, 4-643815-0

Order No.: 35P2177
EAN: 4099889930801
MPN:
4-643815-0
Series: MTA-100

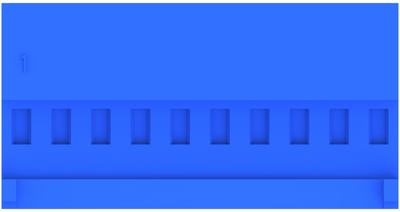

4-643815-0 AMP PCB Connection Systems Image 1

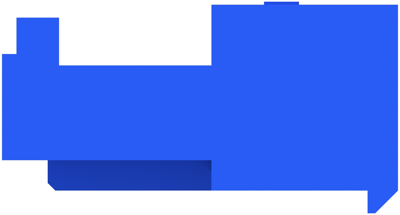

4-643815-0 AMP PCB Connection Systems Image 2

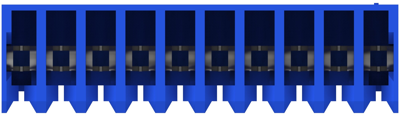

4-643815-0 AMP PCB Connection Systems Image 3

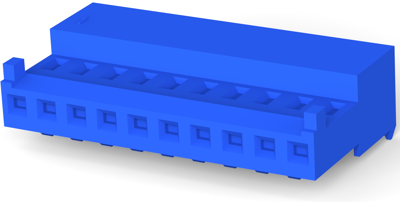

4-643815-0 AMP PCB Connection Systems Image 4

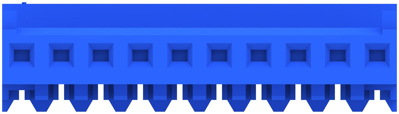

4-643815-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.5593 € *
Available in 5 Days: 5,854 pcs. - if ordered today
Total Price:
3,355.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
6000 pcs.
0.5593 €

PCB Connection System, 4-643815-0, AMP

Wire-to-Board, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: blue
  • Number of positions: 10
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Connection plating tin-plated
contact surface tin-plated
Version socket housing
Rated current 5 A
Rated voltage 250 V
Orientation angled
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour blue
Pin number 10 pole
Connection IDC connection
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
