4-643814-6 | AMP

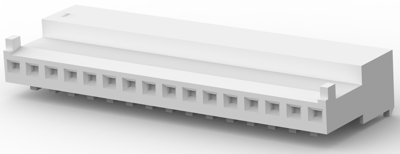

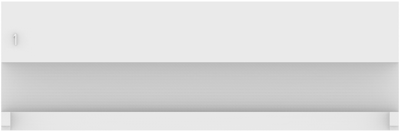

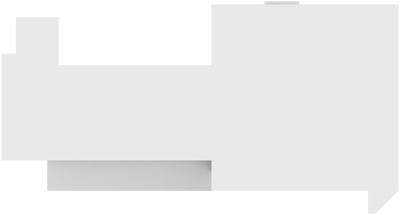

Socket header, 16 pole, pitch 2.54 mm, straight, natural, 4-643814-6
Unit Price (€ / pc.)
2.4514 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4514 €
10 pcs.
2.2729 €
25 pcs.
2.1182 €
50 pcs.
1.9278 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 4-643814-6, AMP
Wire-to-Board, Wire & Cable, 16 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 16
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 5 A | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Version | socket header | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Grid | 2.54 mm | |
| Type of locking | Yes | |
| Number of rows | 1 | |
| Contact type | socket | |
| Colour | natural | |
| Pin number | 16 pole | |
| Connection | IDC connection | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
