4-643814-5 | AMP

Socket housing, 15 pole, pitch 2.54 mm, angled, white, 4-643814-5

Order No.: 35P2222
EAN: 4099889931129
MPN:
4-643814-5
Series: MTA-100

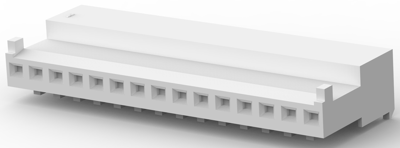

4-643814-5 AMP PCB Connection Systems Image 1

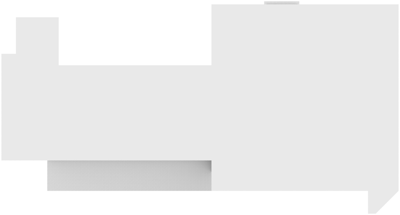

4-643814-5 AMP PCB Connection Systems Image 2

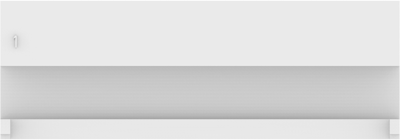

4-643814-5 AMP PCB Connection Systems Image 3
4-643814-5 AMP PCB Connection Systems Image 4
4-643814-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.428 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
5,712.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
1.428 €

PCB Connection System, 4-643814-5, AMP

Wire-to-Board, Wire & Cable, 15 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: white
  • Number of positions: 15
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Colour white
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 15 pole
Version socket housing
Additional parts equipped
Orientation angled
Connection IDC connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin MX
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
