4-641437-5 | AMP

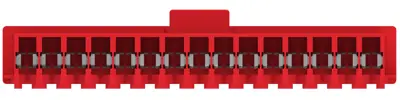

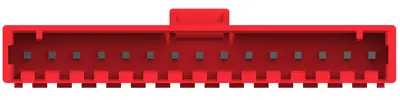

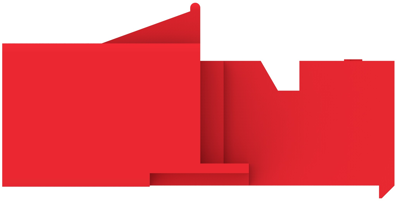

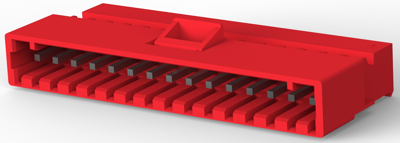

Pin header, 15 pole, pitch 3.96 mm, straight, white, 4-641437-5
Unit Price (€ / pc.)
4.3435 € *
Available in 5 Days: 321 pcs. - if ordered today
Total Price:
4.34 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3435 €
10 pcs.
4.0341 €
25 pcs.
3.7723 €
50 pcs.
3.4272 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 4-641437-5, AMP
Rectangular power connector, Connector assembly, Plug, Wire-to-Wire, 15 Position, 3.96 mm Centerline, Wire & Cable, UL 94V-2.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.96 mm | |
| Pin number | 15 pole | |
| Colour | white | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 7 A | |
| Version | pin header | |
| Connection | IDC connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 600 V | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
