4-641435-5 | AMP

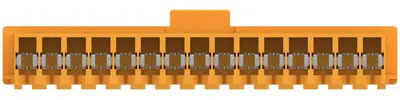

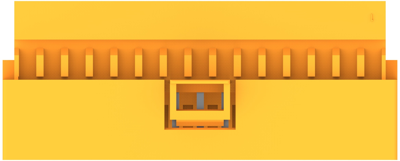

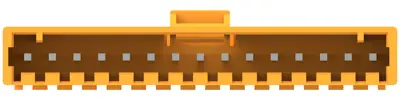

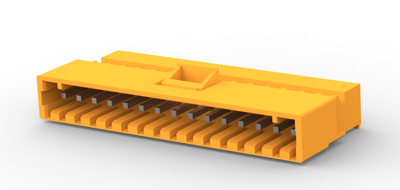

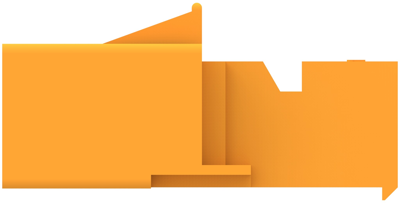

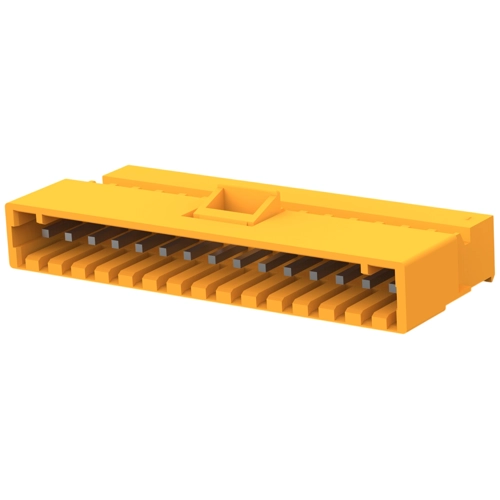

Pin header, 15 pole, pitch 3.96 mm, angled, orange, 4-641435-5
Order No.: 35P1434
EAN: 4099889925517
MPN:
4-641435-5
Unit Price (€ / pc.)
4.8790 € *
Available: 0 pcs.
Leadtime: 24 Weeks **
Total Price:
4.88 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8790 €
10 pcs.
4.4982 €
50 pcs.
4.0341 €
100 pcs.
3.6414 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 4-641435-5, AMP
Wire-to-Wire, Wire & Cable, 15 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Nylon
- Housing Color: orange
- Number of positions: 15
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | Schneidklemmanschluss | |
| Connection plating | verzinnt | |
| Number of rows | 1 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | orange | |
| Contact type | Stift | |
| contact surface | verzinnt | |
| Rated voltage | 600 V | |
| Rated current | 7 A | |
| Orientation | abgewinkelt | |
| Pin number | 15-polig | |
| Grid | 3.96 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
