4-641208-4 | AMP

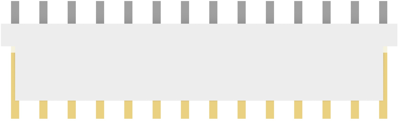

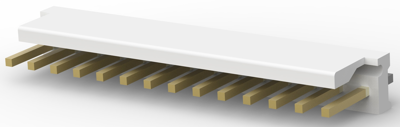

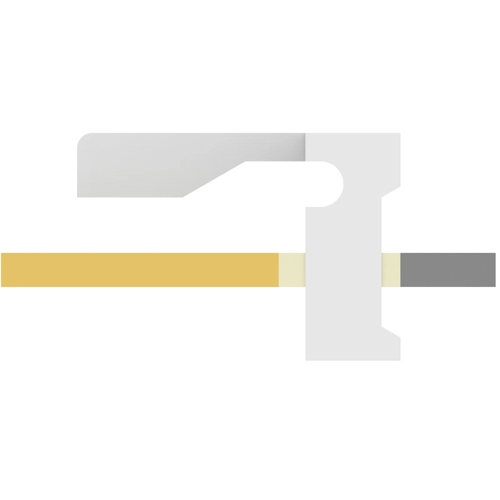

Pin header, 14 pole, pitch 3.96 mm, straight, natural, 4-641208-4
Unit Price (€ / pc.)
8.1039 € *
Available in 5 Days: 5,750 pcs. - if ordered today
Total Price:
8.10 € *
Price list
Quantity
Price per unit*
1 pcs.
8.1039 €
10 pcs.
7.5208 €
25 pcs.
7.0210 €
50 pcs.
6.3784 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 4-641208-4, AMP
Rectangular power connector, Header, Plug, Wire-to-Board, 14 Position, 3.96 mm Centerline, Printed circuit board, UL 94V-0.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | natural | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Rated current | 7 A | |
| Grid | 3.96 mm | |
| Connection plating | tin-plated | |
| Pin number | 14 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | solder connection | |
| Contact type | pin | |
| Rated voltage | 600 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
