4-641126-0 | AMP

Pin header, 10 pole, pitch 2.54 mm, straight, natural, 4-641126-0

Order No.: 71P9070
EAN: 4099891733674
MPN:
4-641126-0
Series: MTA-100

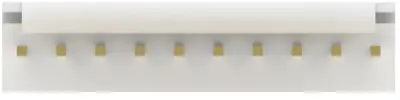

4-641126-0 AMP PCB Connection Systems Image 1

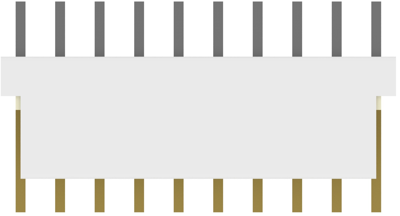

4-641126-0 AMP PCB Connection Systems Image 2

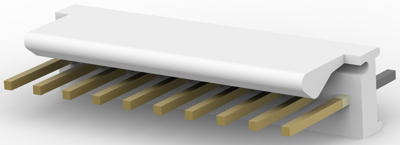

4-641126-0 AMP PCB Connection Systems Image 3

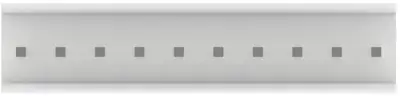

4-641126-0 AMP PCB Connection Systems Image 4
4-641126-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.3086 € *
Available in 5 Days: 21,851 pcs. - if ordered today
Total Price:
2.31 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3086 €
10 pcs.
2.1420 €
25 pcs.
1.9992 €
50 pcs.
1.8207 €
*incl. VAT plus shipping costs
Subject to prior sale

Header assembly, 4-641126-0, AMP

The 4-641126-0 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.

Features

  • One-step assembly
  • No wire stripping
  • No contact damage
  • Reduced wiring errors
  • Simpler tooling
  • Simple maintenance and repair
Technical specifications
Filter Property Value
Additional parts equipped
Orientation straight
Pin number 10 pole
Connection solder connection
Rated current 5 A
Colour natural
Type of locking Yes
Grid 2.54 mm
Number of rows 1
contact surface gold-plated
Rated voltage 250 V
Connection plating tin-plated
Version pin header
Contact type pin
Logistics
Property Value
Customs tariff number 85366990
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
