4-640621-4 | AMP

Socket housing, 14 pole, pitch 2.54 mm, angled, natural, 4-640621-4

Order No.: 35P2214
EAN: 4099889931068
MPN:
4-640621-4

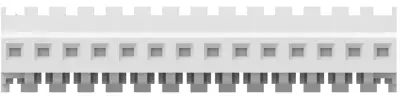

4-640621-4 AMP PCB Connection Systems Image 1

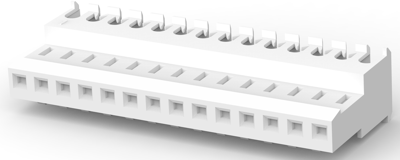

4-640621-4 AMP PCB Connection Systems Image 2

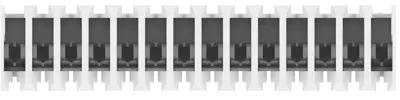

4-640621-4 AMP PCB Connection Systems Image 3

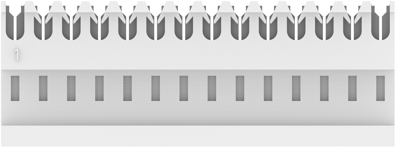

4-640621-4 AMP PCB Connection Systems Image 4

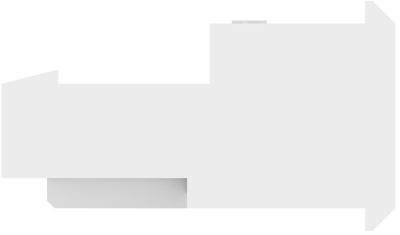

4-640621-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.2015 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
8,806.00 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
2.2015 €

PCB Connection System, 4-640621-4, AMP

Wire-to-Board, Wire & Cable, 14 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: natural
  • Number of positions: 14
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Colour natural
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 14 pole
Version socket housing
Additional parts equipped
Orientation angled
Connection IDC connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin GB
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
