4-640621-1 | AMP

Socket header, 11 pole, pitch 2.54 mm, straight, natural, 4-640621-1

Order No.: 71P9061
EAN: 4099891733636
MPN:
4-640621-1
Series: MTA-100

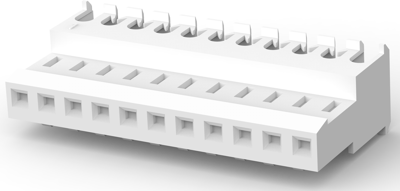

4-640621-1 AMP PCB Connection Systems Image 1

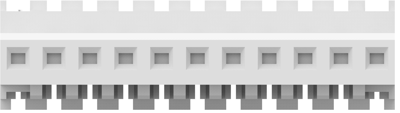

4-640621-1 AMP PCB Connection Systems Image 2

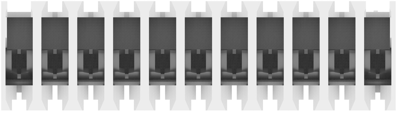

4-640621-1 AMP PCB Connection Systems Image 3

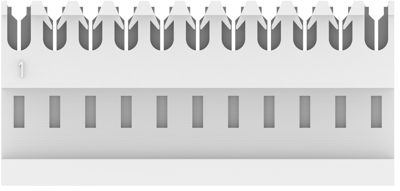

4-640621-1 AMP PCB Connection Systems Image 4

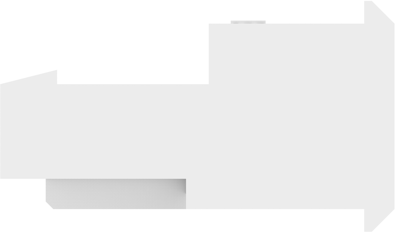

4-640621-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.4518 € *
Available in 5 Days: 853 pcs. - if ordered today
Total Price:
7.26 € *
Price list
Quantity
Price per unit*
5 pcs.
1.4518 €
10 pcs.
1.3447 €
25 pcs.
1.2495 €
50 pcs.
1.1305 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector assembly, 4-640621-1, AMP

The 4-640621-1 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.

Features

  • One-step assembly
  • No wire stripping
  • No contact damage
  • Reduced wiring errors
  • Simpler tooling
  • Simple maintenance and repair
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Connection plating tin-plated
contact surface tin-plated
Version socket header
Rated current 5 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour natural
Pin number 11 pole
Connection IDC connection
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
