4-640620-7 | AMP

Socket header, 17 pole, pitch 2.54 mm, straight, red, 4-640620-7

Order No.: 71P9060
EAN: 4099891733629
MPN:
4-640620-7
Series: MTA-100

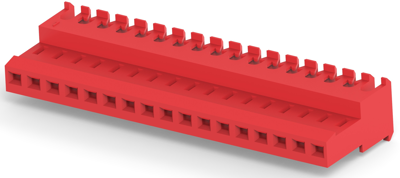

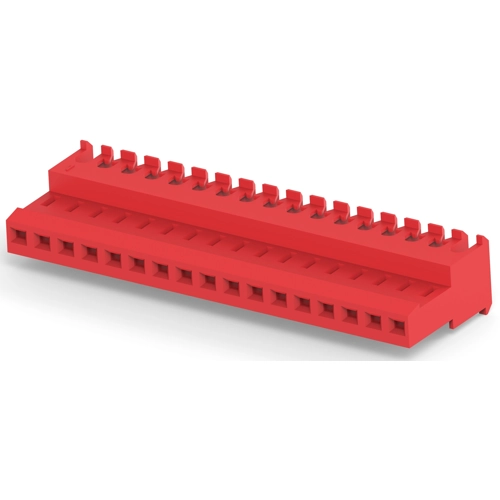

4-640620-7 AMP PCB Connection Systems Image 1

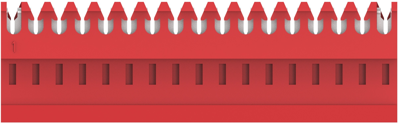

4-640620-7 AMP PCB Connection Systems Image 2

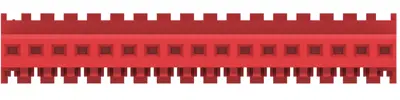

4-640620-7 AMP PCB Connection Systems Image 3

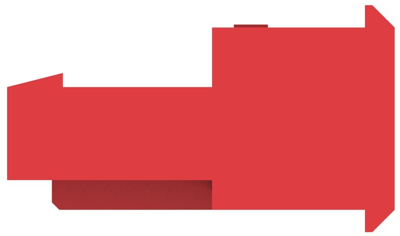

4-640620-7 AMP PCB Connection Systems Image 4

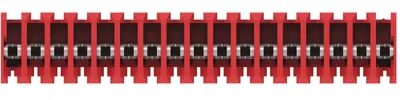

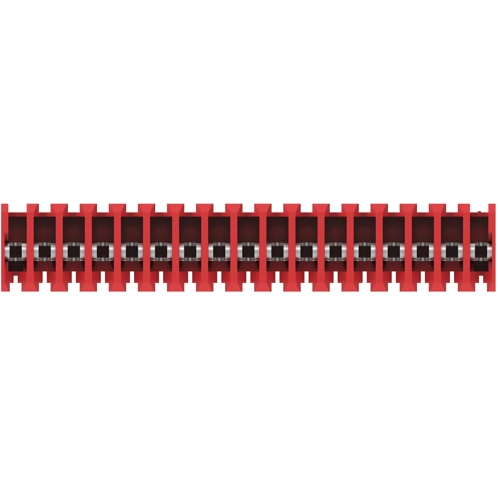

4-640620-7 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.4637 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
5,854.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
4000 pcs.
1.4637 €

Connector assembly, 4-640620-7, AMP

The 4-640620-7 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.

Features

  • One-step assembly
  • No wire stripping
  • No contact damage
  • Reduced wiring errors
  • Simpler tooling
  • Simple maintenance and repair
Technical specifications
Filter Property Value
Grid 2.54 mm
Contact type socket
Connection plating tin-plated
contact surface tin-plated
Version socket header
Rated current 5 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour red
Pin number 17 pole
Connection IDC connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85389099
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
