4-640601-0 | AMP

Socket header, 10 pole, pitch 3.96 mm, straight, red, 4-640601-0

Order No.: 71P9056
MPN:
4-640601-0
Series: MTA-156
4-640601-0 AMP PCB Connection Systems Image 1

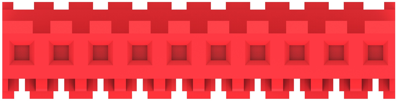

4-640601-0 AMP PCB Connection Systems Image 2

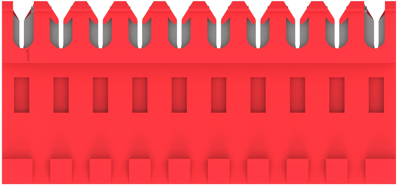

4-640601-0 AMP PCB Connection Systems Image 3

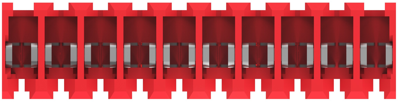

4-640601-0 AMP PCB Connection Systems Image 4
4-640601-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.3447 € *
Available in 5 Days: 2,001 pcs. - if ordered today
Total Price:
201.70 € *
*incl. VAT plus shipping costs
Subject to prior sale
150 pcs.
1.3447 €

Power connector, 4-640601-0, AMP

Rectangular power connector, Connector assembly, Receptacle, Wire-to-Board, 10 Position, 3.96 mm Centerline, Wire & Cable.

Technical specifications
Filter Property Value
Version socket header
Colour red
Type of locking Yes
Pin number 10 pole
Additional parts equipped
Connection IDC connection
Connection plating tin-plated
Rated voltage 600 V
Contact type socket
Rated current 7 A
contact surface tin-plated
Orientation straight
Grid 3.96 mm
Number of rows 1
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
