4-640600-0 | AMP

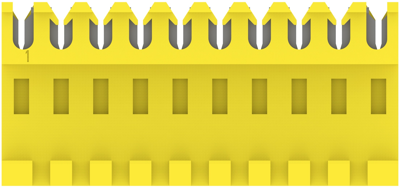

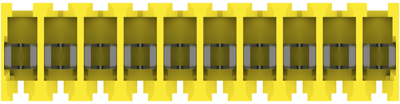

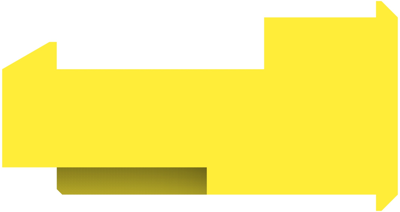

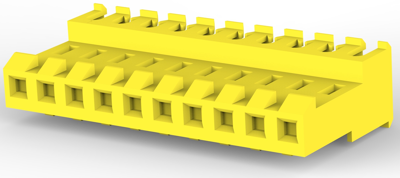

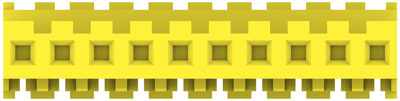

Socket housing, 10 pole, pitch 3.96 mm, straight, yellow, 4-640600-0
Order No.: 35P1382
EAN: 4099889925036
MPN:
4-640600-0
Unit Price (€ / pc.)
0.8449 € *
Standard delivery time from the manufacturer is: 23 Weeks
PCB Connection System, 4-640600-0, AMP
Wire-to-Board, Wire & Cable, 10 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Housing Material: Nylon
- Housing Color: yellow
- Number of positions: 10
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 7 A
- Centerline (Pitch): 3.96 mm
- Sealable: No
- Contact Layout: In-line
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.96 mm | |
| contact surface | tin-plated | |
| Contact type | socket | |
| Connection | IDC connection | |
| Connection plating | tin-plated | |
| Rated voltage | 600 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 10 pole | |
| Additional parts | equipped | |
| Colour | yellow | |
| Version | socket housing | |
| Rated current | 7 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
