4-640599-5 | AMP

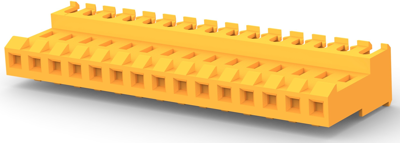

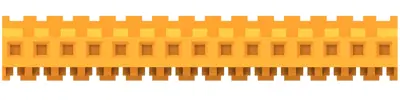

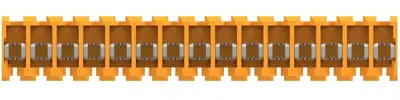

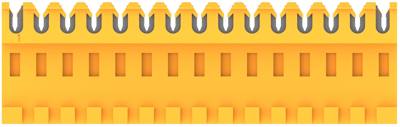

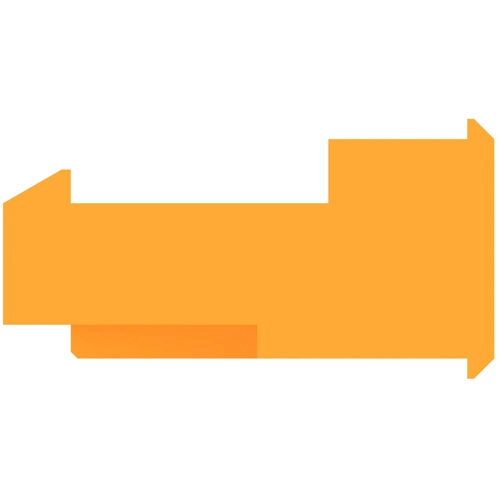

Socket header, 15 pole, pitch 3.96 mm, straight, orange, 4-640599-5
Unit Price (€ / pc.)
1.6660 € *
Available in 5 Days: 719 pcs. - if ordered today
Total Price:
249.90 € *
Price list
Quantity
Price per unit*
150 pcs.
1.6660 €
300 pcs.
1.6422 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 4-640599-5, AMP
Rectangular power connector, Connector assembly, Receptacle, Wire-to-Board, 15 Position, 3.96 mm Centerline, Wire & Cable.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.96 mm | |
| Pin number | 15 pole | |
| Colour | orange | |
| Connection plating | tin-plated | |
| Contact type | socket | |
| Rated current | 7 A | |
| Version | socket header | |
| Connection | IDC connection | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 600 V | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
