4-640441-0 | AMP

Socket housing, 10 pole, pitch 2.54 mm, angled, white, 4-640441-0

Order No.: 35P2181
EAN: 4099889930825
MPN:
4-640441-0
Series: MTA-100

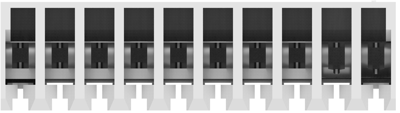

4-640441-0 AMP PCB Connection Systems Image 1

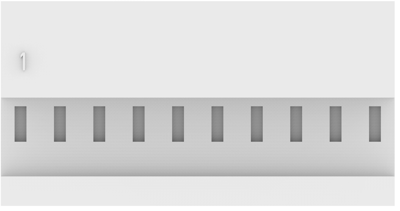

4-640441-0 AMP PCB Connection Systems Image 2

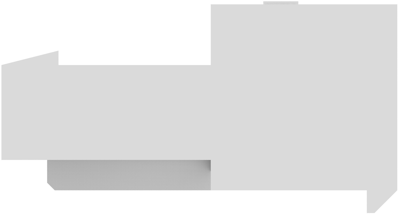

4-640441-0 AMP PCB Connection Systems Image 3

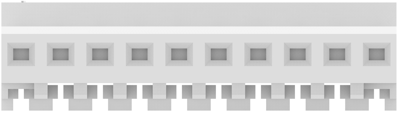

4-640441-0 AMP PCB Connection Systems Image 4

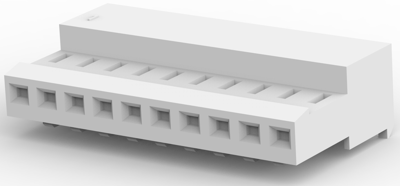

4-640441-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.3685 € *
Available in 5 Days: 2,069 pcs. - if ordered today
Total Price:
1.37 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3685 €
10 pcs.
1.2495 €
50 pcs.
1.1186 €
100 pcs.
1.0115 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 4-640441-0, AMP

Wire-to-Board, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon 6/6
  • Housing Color: white
  • Number of positions: 10
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Colour white
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 10 pole
Version socket housing
Additional parts equipped
Orientation angled
Connection IDC connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
