4-640440-9 | AMP

Socket header, 19 pole, pitch 2.54 mm, straight, red, 4-640440-9

Order No.: 71P9049
EAN: 4099891733544
MPN:
4-640440-9
Series: MTA-100
4-640440-9 AMP PCB Connection Systems Image 1

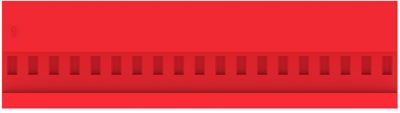

4-640440-9 AMP PCB Connection Systems Image 2

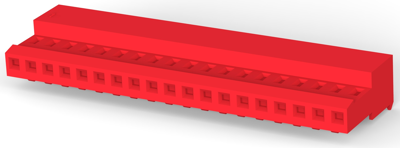

4-640440-9 AMP PCB Connection Systems Image 3

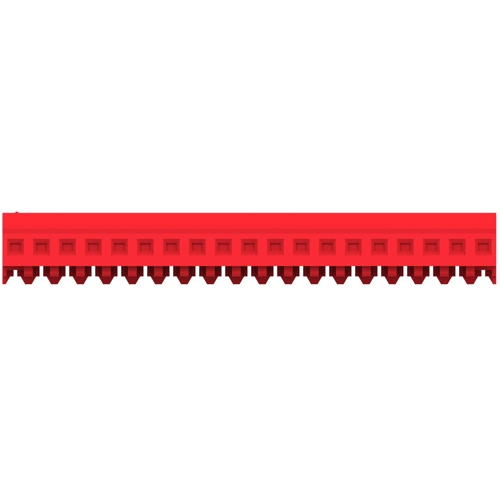

4-640440-9 AMP PCB Connection Systems Image 4

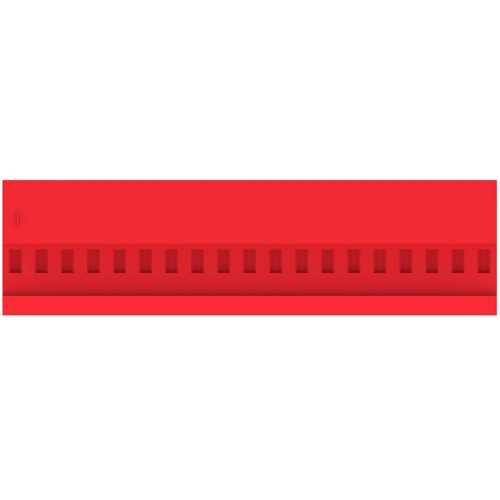

4-640440-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
5.4502 € *
Available in 5 Days: 1,872 pcs. - if ordered today
Total Price:
5.45 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4502 €
10 pcs.
5.0218 €
50 pcs.
4.5220 €
100 pcs.
4.0698 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector assembly, 4-640440-9, AMP

The 4-640440-9 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.

Features

  • One-step assembly
  • No wire stripping
  • No contact damage
  • Reduced wiring errors
  • Simpler tooling
  • Simple maintenance and repair
Technical specifications
Colour red
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 19 pole
Version socket header
Additional parts equipped
Orientation straight
Connection IDC connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
