4-640440-5 | AMP

Socket housing, 15 pole, pitch 2.54 mm, angled, red, 4-640440-5

Order No.: 35P2218
EAN: 4099889931105
MPN:
4-640440-5
Series: MTA-100

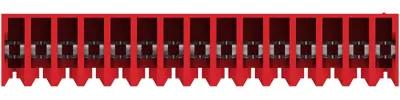

4-640440-5 AMP PCB Connection Systems Image 1

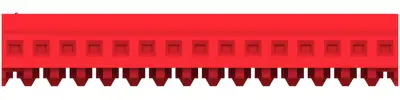

4-640440-5 AMP PCB Connection Systems Image 2

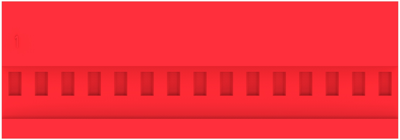

4-640440-5 AMP PCB Connection Systems Image 3

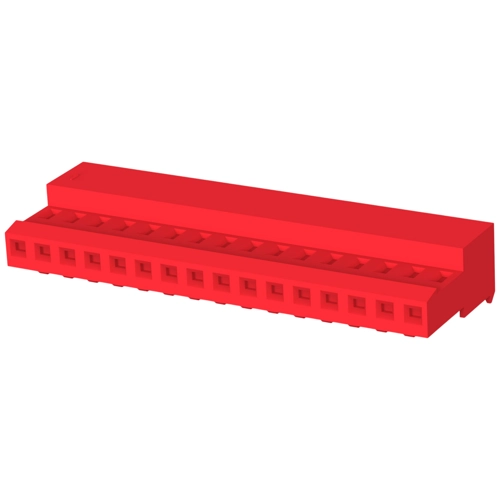

4-640440-5 AMP PCB Connection Systems Image 4
4-640440-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.2491 € *
Available in 5 Days: 1,190 pcs. - if ordered today
Total Price:
2.25 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2491 €
10 pcs.
2.0468 €
50 pcs.
1.8445 €
100 pcs.
1.6541 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 4-640440-5, AMP

Wire-to-Board, Wire & Cable, 15 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: red
  • Number of positions: 15
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Colour red
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 15 pole
Version socket housing
Additional parts equipped
Orientation angled
Connection IDC connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
