4-2315124-0 | AMP

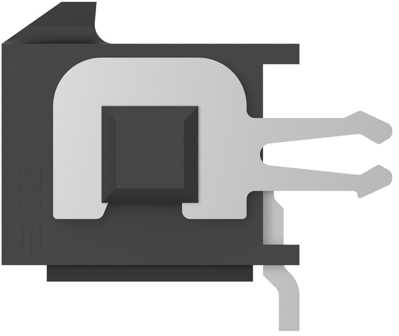

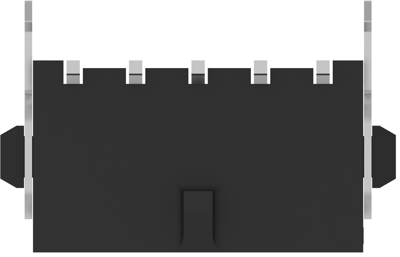

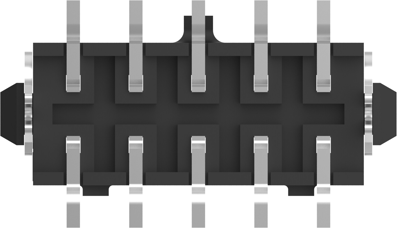

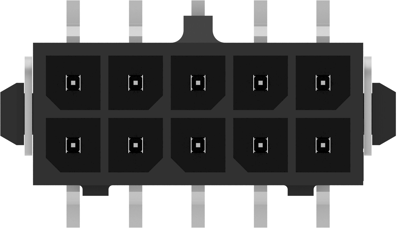

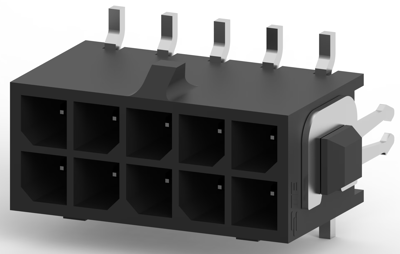

Pin header, 10 pole, pitch 3 mm, straight, black, 4-2315124-0
Unit Price (€ / pc.)
1.9040 € *
Standard delivery time from the manufacturer is: 28 Weeks
Total Price:
1.90 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9040 €
10 pcs.
1.7612 €
25 pcs.
1.6422 €
50 pcs.
1.4994 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 4-2315124-0, AMP
The 4-2315124-0 offers wire-to-wire and wire-to-board connections with contacts on a 3 mm centerline and current ratings up to 5 Amps max. This product includes the appliance, instrumentation, industrial machinery, home equipment, and security system industries.
Features
- Dual beam receptacle contact design for improved reliabilit
Applications
- Household appliances
- Lighting
- Factory automation
- Data storage
- Garage door opener
- Security system
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | SMD | |
| Connection plating | tin-plated | |
| Orientation | straight | |
| Number of rows | 2 | |
| Pin number | 10 pole | |
| Additional parts | equipped | |
| Colour | black | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
