4-216791-0 | AMP

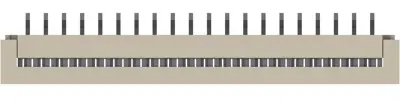

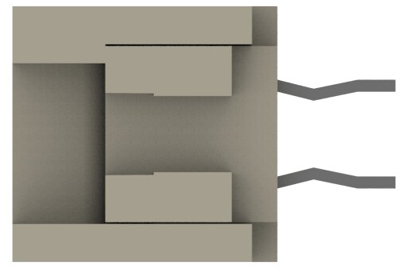

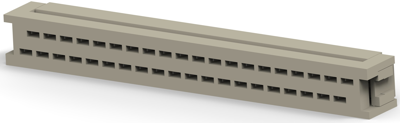

Pin header, 40 pole, pitch 2.54 mm, straight, gray, 4-216791-0
Unit Price (€ / pc.)
2.7727 € *
Available in 5 Days: 3,431 pcs. - if ordered today
Total Price:
2.77 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7727 €
10 pcs.
2.5704 €
25 pcs.
2.4038 €
50 pcs.
2.1777 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 4-216791-0, AMP
Wire-to-Board, Printed Circuit Board, Wire & Cable, Vertical, 40 Position
Technical Data
- Connector Mounting Type: Board Mount
- Housing Color: gray
- Orientation: straight
- Number of positions: 40
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Rated current: 1 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: With
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Orientation | straight | |
| Pin number | 40 pole | |
| Connection | IDC connection | |
| Rated current | 1 A | |
| Colour | gray | |
| Grid | 2.54 mm | |
| Number of rows | 2 | |
| contact surface | tin-plated | |
| Connection plating | tin-plated | |
| Version | pin header | |
| Contact type | pin |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
