4-178842-1 | AMP

Plug housing, 4 pole, pitch 6.2 mm, straight, natural, 4-178842-1

Order No.: 34P6198
EAN: 4099889911077
MPN:
4-178842-1

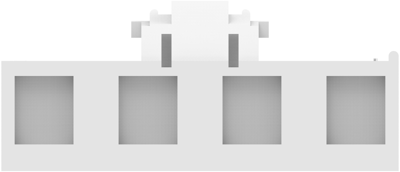

4-178842-1 AMP PCB Connection Systems Image 1

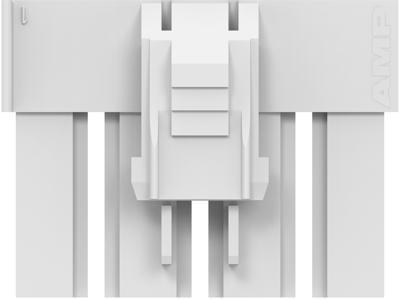

4-178842-1 AMP PCB Connection Systems Image 2

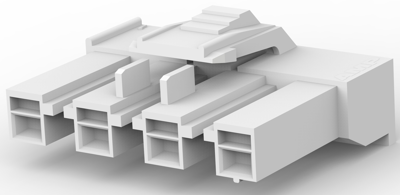

4-178842-1 AMP PCB Connection Systems Image 3

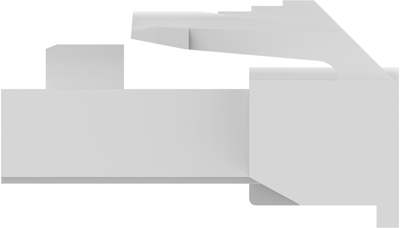

4-178842-1 AMP PCB Connection Systems Image 4

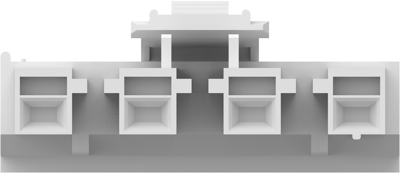

4-178842-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2463 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
1,231.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.2463 €

PCB Connection System, 4-178842-1, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 4 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Brass
  • Housing Material: Nylon 6/6
  • Housing Color: natural
  • Number of positions: 4
  • Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 6.2 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Type of locking Yes
Version plug housing
Connection crimp connection
Number of rows 1
Contact type socket
Additional parts unequipped
Rated voltage 300 V
Pin number 4 pole
Grid 6.2 mm
Colour natural
Rated current 7 A
Orientation straight
Logistics
Property Value
Country of origin TW
Customs tariff number 85389091
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
