4-1470209-5 | AMP

Socket header, 44 pole, pitch 2 mm, straight, black, 4-1470209-5

Order No.: 59F837
MPN:
4-1470209-5
Series: AMPMODU

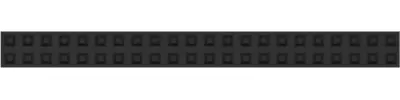

4-1470209-5 AMP PCB Connection Systems Image 1
4-1470209-5 AMP PCB Connection Systems Image 2

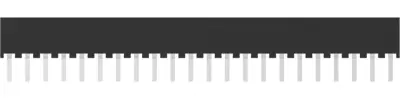

4-1470209-5 AMP PCB Connection Systems Image 3

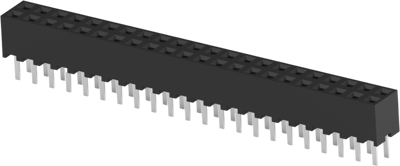

4-1470209-5 AMP PCB Connection Systems Image 4
4-1470209-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.7608 € *
Available in 5 Days: 5,064 pcs. - if ordered today
Total Price:
2.76 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7608 €
10 pcs.
2.5704 €
50 pcs.
2.3562 €
100 pcs.
2.1539 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Mount Receptacle, 4-1470209-5, AMP

PCB Mount Receptacle, Vertical, Board-to-Board, 44 Position, 2 mm Centerline, Gold (Au), Through Hole - Solder, Signal, Black, AMPMODU 2 mm.

Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 1 A
Grid 2 mm
Connection plating tin-plated
Pin number 44 pole
Version socket header
Orientation straight
Connection solder connection
Contact type socket
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
