4-1123722-5 | AMP

Plug housing, 5 pole, pitch 3.96 mm, straight, red, 4-1123722-5

Order No.: 34P7232
EAN: 4099889914641
MPN:
4-1123722-5
Series: Economy Power

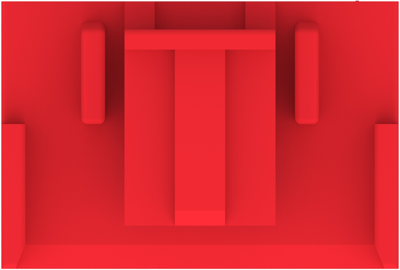

4-1123722-5 AMP PCB Connection Systems Image 1

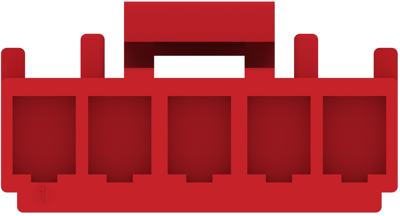

4-1123722-5 AMP PCB Connection Systems Image 2

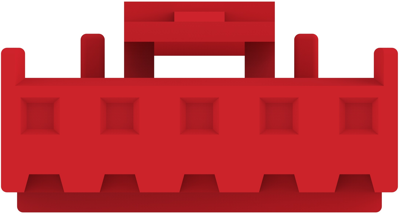

4-1123722-5 AMP PCB Connection Systems Image 3

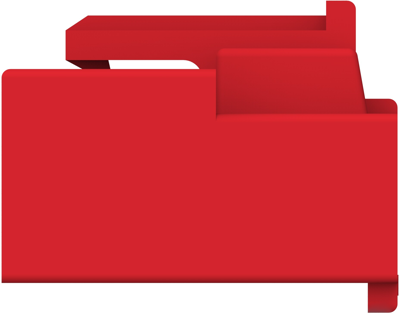

4-1123722-5 AMP PCB Connection Systems Image 4

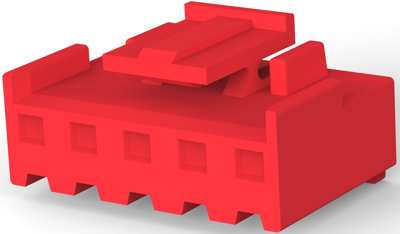

4-1123722-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.1761 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
0.88 € *
*incl. VAT plus shipping costs
Subject to prior sale
5 pcs.
0.1761 €

PCB Connection System, 4-1123722-5, AMP

Wire-to-Board, Wire & Cable, 5 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Housing Material: Nylon 66
  • Housing Color: red
  • Number of positions: 5
  • Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 3.96 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour red
Type of locking Yes
Rated current 8 A
Grid 3.96 mm
Pin number 5 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin TW
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
