353352-1 | AMP
Pin header, 5 pole, pitch 2.5 mm, straight, natural, 353352-1
Unit Price (€ / pc.)
0.9401 € *
Available in 5 Days: 1,384 pcs. - if ordered today
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9401 €
10 pcs.
0.8687 €
25 pcs.
0.8092 €
50 pcs.
0.7378 €
*incl. VAT plus shipping costs
Subject to prior sale

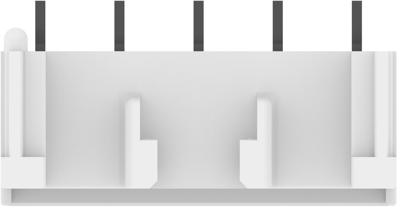

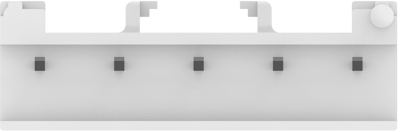

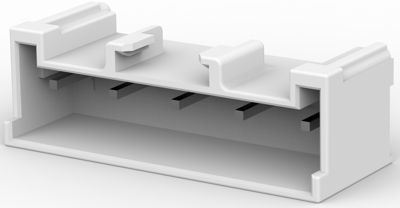

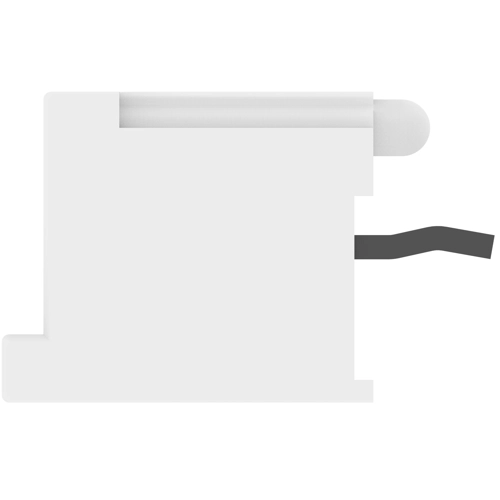

Pin header, 353352-1, AMP
PCB Mount header, Vertical, Wire-to-Board, 5 Position, 2.5 mm Centerline, Fully shrouded, Tin, Through Hole-Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection plating | tin-plated | |
| Grid | 2.5 mm | |
| Orientation | straight | |
| Connection | solder connection | |
| Contact type | pin | |
| Rated current | 3 A | |
| Additional parts | equipped | |
| Version | pin header | |
| Pin number | 5 pole | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Number of rows | 1 | |
| Colour | natural | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
