353293-8 | AMP

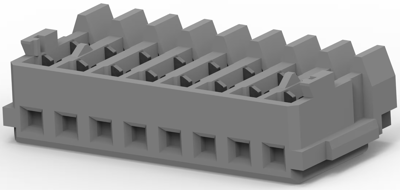

Socket housing, 8 pole, pitch 1.5 mm, straight, natural, 353293-8
Order No.: 36P7073
EAN: 4099889947403
MPN:
353293-8
Unit Price (€ / pc.)
0.4641 € *
Available in 5 Days: 107,812 pcs. - if ordered today
Total Price:
0.46 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4641 €
10 pcs.
0.4284 €
25 pcs.
0.4046 €
50 pcs.
0.3570 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 353293-8, AMP
Wire-to-Board, Wire & Cable, 8 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Housing Color: natural
- Number of positions: 8
- Operating Temperature Range: -30 – 105 °C [-22 – 221 °F]
- Rated current: 2 A
- Centerline (Pitch): 1.5 mm
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 2 A | |
| contact surface | tin-plated | |
| Colour | natural | |
| Additional parts | equipped | |
| Contact type | socket | |
| Grid | 1.5 mm | |
| Orientation | straight | |
| Rated voltage | 50 V | |
| Connection | IDC connection | |
| Pin number | 8 pole | |
| Version | socket housing | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
