350866-1 | AMP

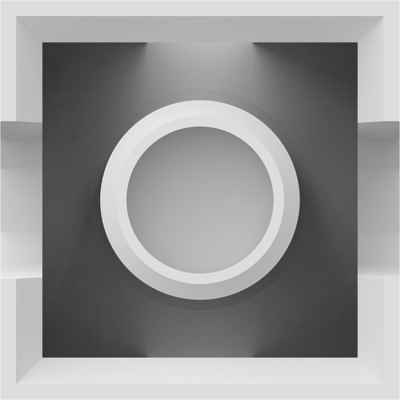

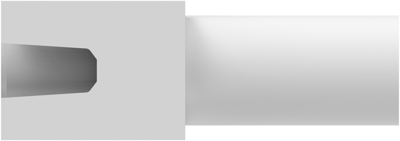

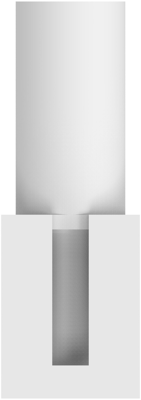

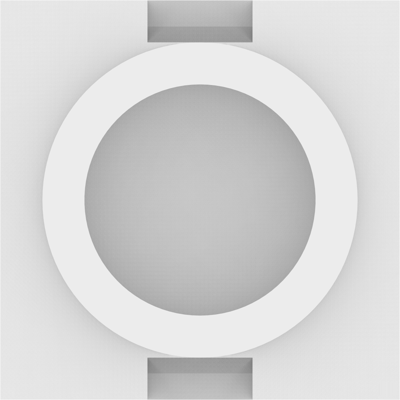

Socket housing, 1 pole, straight, white, 350866-1
Unit Price (€ / pc.)
0.5474 € *
Available in 5 Days: 8,525 pcs. - if ordered today
Total Price:
0.55 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5474 €
10 pcs.
0.5117 €
25 pcs.
0.4760 €
50 pcs.
0.4284 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 350866-1, AMP
Wire-to-Wire, Wire & Cable, 1 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: white
- Number of positions: 1
- Operating Temperature Range: -55 – 125 °C [-67 – 257 °F]
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 19 A | |
| Colour | white | |
| Additional parts | unequipped | |
| Contact type | socket/pin | |
| Orientation | straight | |
| Rated voltage | 600 V | |
| Connection | crimp connection | |
| Pin number | 1 pole | |
| Version | socket housing | |
| Type of locking | Yes | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
