350830-4 | AMP

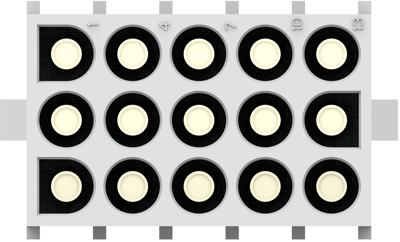

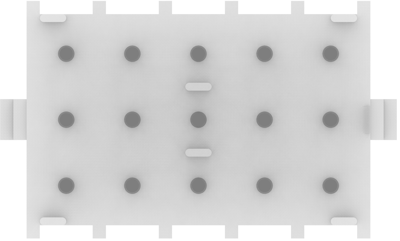

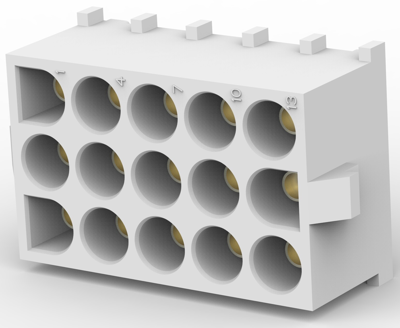

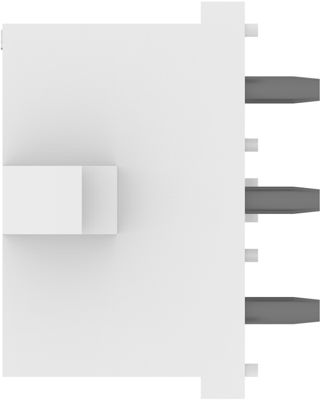

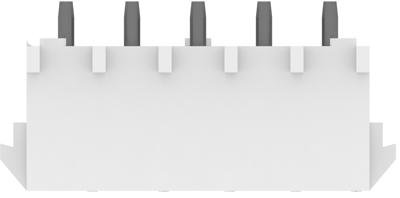

Pin header, 15 pole, pitch 6.35 mm, straight, natural, 350830-4
Unit Price (€ / pc.)
11.0313 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
11.03 € *
Price list
Quantity
Price per unit*
1 pcs.
11.0313 €
5 pcs.
10.4601 €
10 pcs.
9.7937 €
25 pcs.
8.9250 €
*incl. VAT plus shipping costs
Subject to prior sale
Header assembly, 350830-4, AMP
Rectangular power connector, Header, Plug, Wire-to-Board, 15 Position, 6.35 mm Centerline, Printed circuit board.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | gold-plated | |
| Pin number | 15 pole | |
| Type of locking | Yes | |
| Rated voltage | 600 V | |
| Connection plating | tin-plated | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 6.35 mm | |
| Number of rows | 3 | |
| Additional parts | equipped | |
| Connection | solder connection | |
| Rated current | 19 A | |
| Colour | natural |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
