350786-3 | AMP

Pin header, 2 pole, pitch 6.35 mm, straight, white, 350786-3

Order No.: 35P4687
EAN: 4099889933765
MPN:
350786-3

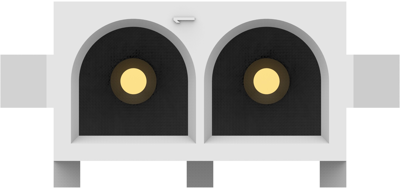

350786-3 AMP PCB Connection Systems Image 1

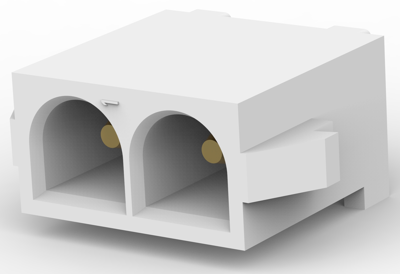

350786-3 AMP PCB Connection Systems Image 2

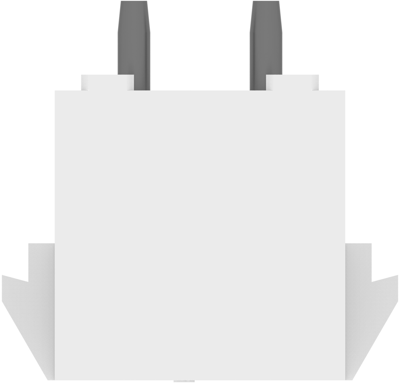

350786-3 AMP PCB Connection Systems Image 3

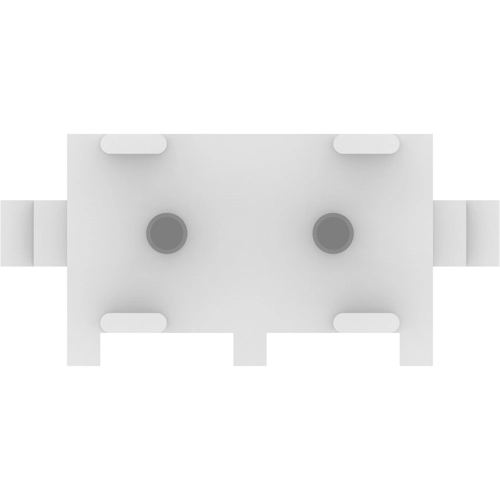

350786-3 AMP PCB Connection Systems Image 4
350786-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
2.142 € *
Available in 5 Days: 378 pcs. - if ordered today
Total Price:
1,927.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
900 pcs.
2.142 €

PCB Connection System, 350786-3, AMP

Wire-to-Board, Printed Circuit Board, Shrouded, Vertical, 2 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: white
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 6.35 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Version pin header
Contact type pin
Pin number 2 pole
Grid 6.35 mm
Connection solder pin
Orientation straight
Type of locking Yes
contact surface gold-plated
Connection plating gold-plated
Rated voltage 600 V
Rated current 12 A
Additional parts equipped
Number of rows 1
Breakable No
Colour white
Logistics
Customs tariff number 85366930
Country of origin US
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
