350781-1 | AMP

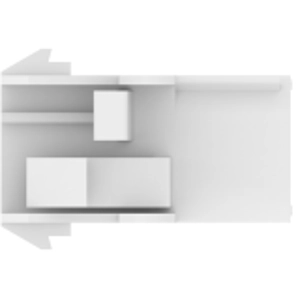

Socket housing, 6 pole, pitch 6.35 mm, straight, natural, 350781-1
Unit Price (€ / pc.)
0.7616 € *
Available in 5 Days: 5,693 pcs. - if ordered today
PCB Connection System, 350781-1, AMP
Wire-to-Panel, Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Panel Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 6
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 6.35 mm
- Row-to-Row Spacing: 6.35 mm [0.25 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 2 | |
| Grid | 6.35 mm | |
| Orientation | straight | |
| Pin number | 6 pole | |
| Connection | crimp connection | |
| Type of locking | Yes | |
| Colour | natural | |
| Rated current | 19 A | |
| Additional parts | unequipped | |
| Contact type | socket/pin | |
| Version | socket housing | |
| Rated voltage | 600 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85472000 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
