350735-1 | AMP

Plug housing, 12 pole, pitch 6.35 mm, straight, natural, 350735-1

Order No.: 35P5040
EAN: 4099889936766
MPN:
350735-1

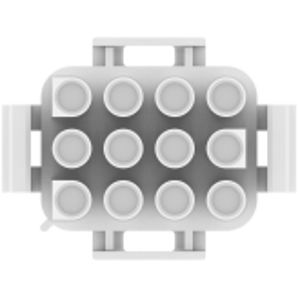

350735-1 AMP PCB Connection Systems Image 1

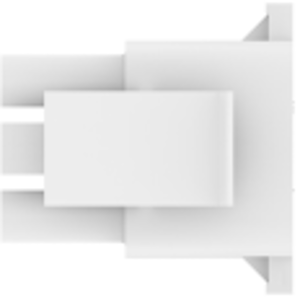

350735-1 AMP PCB Connection Systems Image 2
350735-1 AMP PCB Connection Systems Image 3
350735-1 AMP PCB Connection Systems Image 4
350735-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.8806 € *
Available: 75 pcs.
Available in 5 Days: 2,305 pcs. - if ordered today
Total Price:
4.40 € *
Price list
Quantity
Price per unit*
5 pcs.
0.8806 €
10 pcs.
0.8211 €
25 pcs.
0.7616 €
50 pcs.
0.6902 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 350735-1, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 12 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Male
  • Housing Material: Nylon GF
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 12
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 19 A
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Grid 6.35 mm
Contact type socket/pin
Version plug housing
Rated current 19 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 3
Colour natural
Pin number 12 pole
Connection crimp connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
