350715-4 | AMP

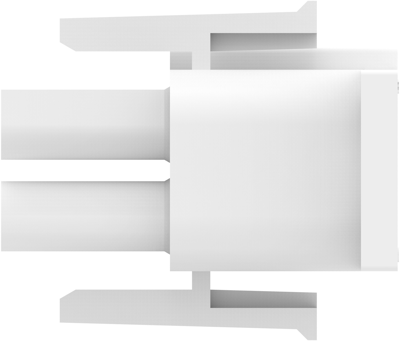

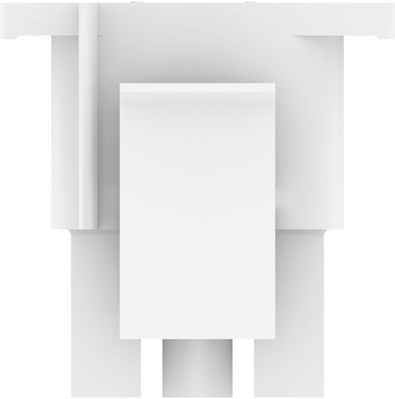

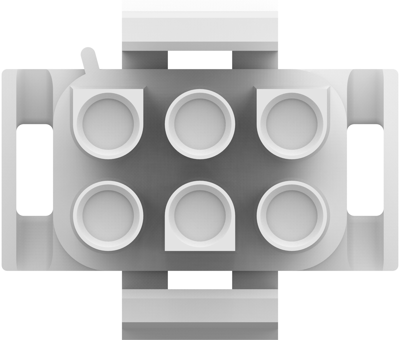

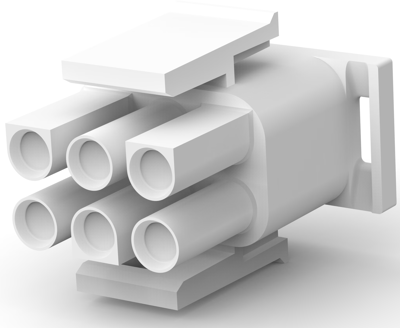

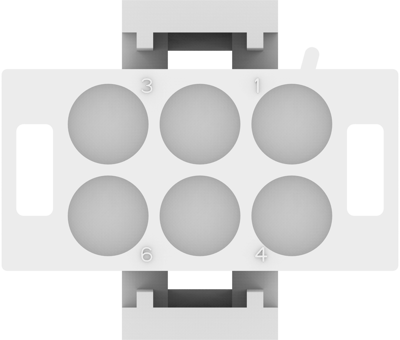

Plug housing, 6 pole, pitch 6.35 mm, straight, white, 350715-4
Cable connectors, bare, 1 to 15 poles, type TE Connectivity/AMP Universal Mate-N-Lok.
Made of white polyamide, flame retardant to UL 94 V-0, certified to VDE 0720, VDE 0730 regulations 29 and 30, UL and CSA. The permanently covered pin or female contacts may be live when inserted subsequently. Housing for insert mix with pin or female contacts, a leading grounding pin possible, with safe interlock and absolutely touch-proof when plugged in or separated. Current load capacity depending on the number of poles; conductor cross-section and ambient temperature: up to 25 A max. Dielectric strength: 5.0 kVAC/10 kV contact/contact. Operating temperatures: –55 to +105 A. Please order the corresponding pin or female contacts and coding pins described below separately.
Cable connectors, bare, 6 poles, type 0-035../0-092.
Type: 0–0350715–4, 6–pole, plug housing
| Colour | white | |
| Type of locking | Yes | |
| Rated current | 19 A | |
| Grid | 6.35 mm | |
| Pin number | 6 pole | |
| Version | plug housing | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | socket/pin | |
| Rated voltage | 600 V | |
| Number of rows | 2 |
| Country of origin | CN |
| Customs tariff number | 85472000 |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
