350585-1 | AMP

Pin header, 6 pole, pitch 6.35 mm, straight, natural, 350585-1

Order No.: 35P4817
EAN: 4099889934786
MPN:
350585-1

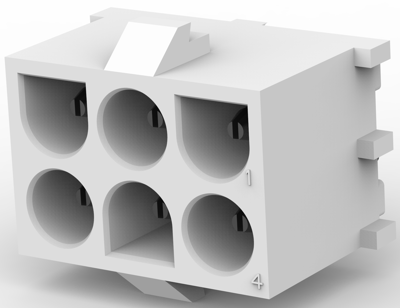

350585-1 AMP PCB Connection Systems Image 1

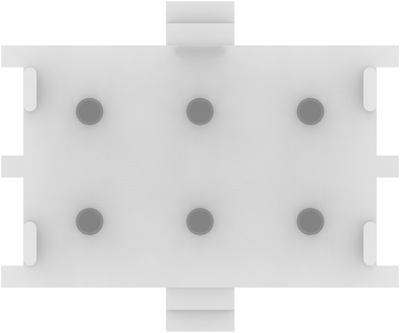

350585-1 AMP PCB Connection Systems Image 2

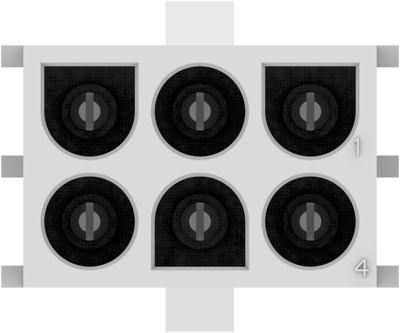

350585-1 AMP PCB Connection Systems Image 3

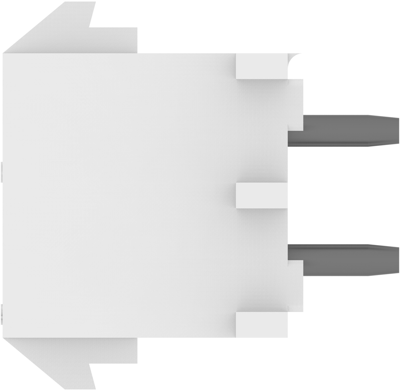

350585-1 AMP PCB Connection Systems Image 4

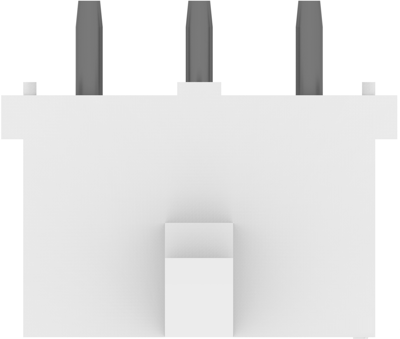

350585-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.2971 € *
Standard delivery time from the manufacturer is: 20 Weeks
Total Price:
1.30 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2971 €
10 pcs.
1.1781 €
50 pcs.
1.0591 €
100 pcs.
0.9520 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 350585-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 6 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 6
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 6.35 mm
  • Row-to-Row Spacing: 6.35 mm [0.25 in]
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Colour natural
Type of locking Yes
contact surface pre-tinned
Rated current 12 A
Grid 6.35 mm
Connection plating pre-tinned
Pin number 6 pole
Version pin header
Additional parts equipped
Orientation straight
Connection solder pin
Contact type pin
Rated voltage 600 V
Number of rows 2
Logistics
Country of origin IT
Customs tariff number 85366930
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
