350539-1 | AMP

Pin header, 2 pole, pitch 5.08 mm, straight, natural, 350539-1

Order No.: 34P6536
EAN: 4099889911923
MPN:
350539-1

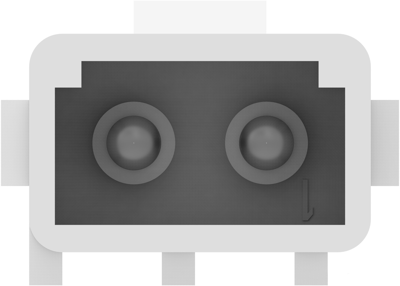

350539-1 AMP PCB Connection Systems Image 1

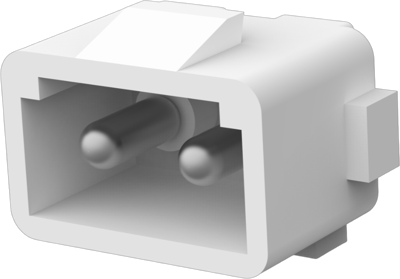

350539-1 AMP PCB Connection Systems Image 2

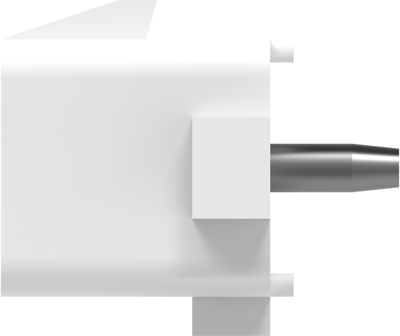

350539-1 AMP PCB Connection Systems Image 3

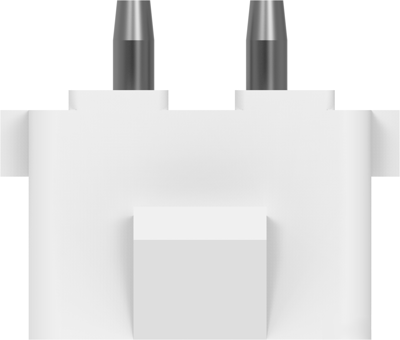

350539-1 AMP PCB Connection Systems Image 4

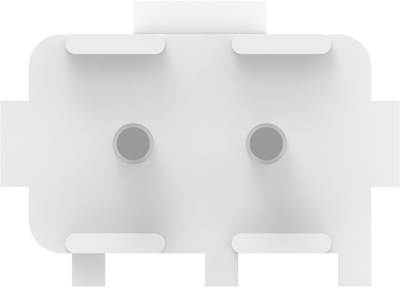

350539-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9758 € *
Available: 237 pcs.
Available in 5 Days: 2,629 pcs. - if ordered today
Total Price:
0.98 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9758 €
10 pcs.
0.8806 €
50 pcs.
0.7854 €
100 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 350539-1, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 2 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: Nylon
  • Housing Color: natural
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 12 A
  • Centerline (Pitch): 5.08 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Contact type pin
Pin number 2 pole
Grid 5.08 mm
Colour natural
Version pin header
Connection solder pin
Connection plating gold-plated
Rated voltage 250 V
Rated current 12 A
Orientation straight
Number of rows 1
contact surface gold-plated
Additional parts equipped
Type of locking Yes
Logistics
Property Value
Customs tariff number 85366930
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
