350423-1 | AMP

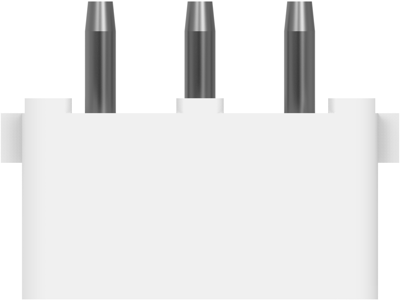

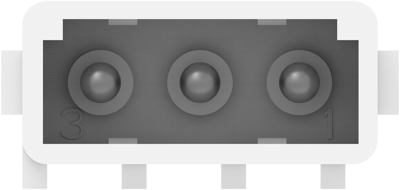

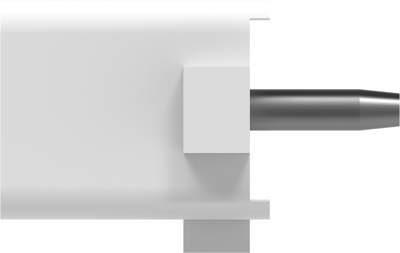

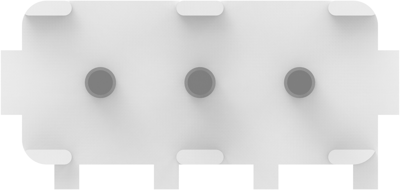

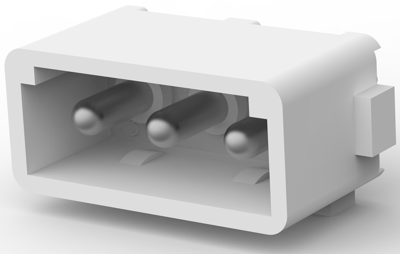

Pin header, 3 pole, pitch 5.08 mm, straight, natural, 350423-1
Order No.: 34P6539
EAN: 4099889911954
MPN:
350423-1
Unit Price (€ / pc.)
0.4641 € *
Standard delivery time from the manufacturer is: 20 Weeks
PCB Connection System, 350423-1, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 3 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 3
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 12 A
- Centerline (Pitch): 5.08 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 5.08 mm | |
| Contact type | pin | |
| Connection plating | pre-tinned | |
| contact surface | pre-tinned | |
| Version | pin header | |
| Rated current | 12 A | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 3 pole | |
| Connection | solder pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
