350219-1 | AMP

Socket header, 10 pole, pitch 4.95 mm, straight, natural, 350219-1

Order No.: 71P8119
EAN: 4099891731106
MPN:
350219-1

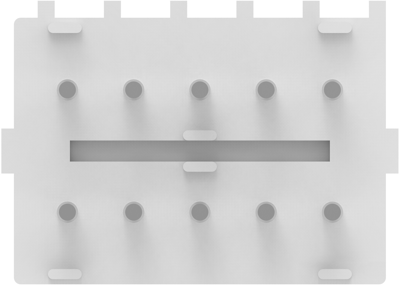

350219-1 AMP PCB Connection Systems Image 1

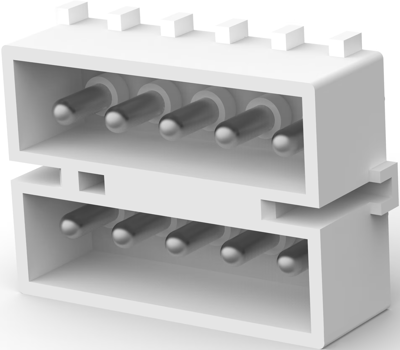

350219-1 AMP PCB Connection Systems Image 2

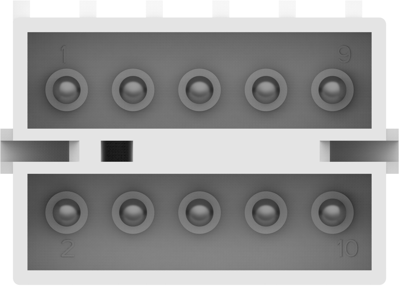

350219-1 AMP PCB Connection Systems Image 3

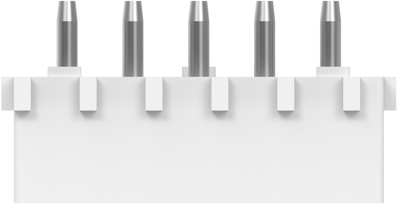

350219-1 AMP PCB Connection Systems Image 4

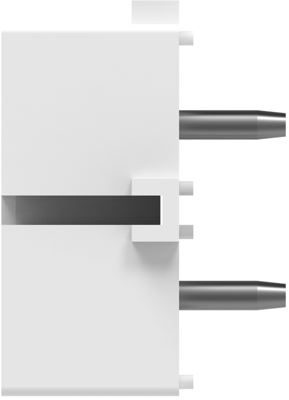

350219-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.4280 € *
Available in 5 Days: 957 pcs. - if ordered today
Total Price:
7.14 € *
Price list
Quantity
Price per unit*
5 pcs.
1.4280 €
10 pcs.
1.3209 €
25 pcs.
1.2257 €
50 pcs.
1.1186 €
*incl. VAT plus shipping costs
Subject to prior sale

Power key connector, 350219-1, AMP

The 350219-1 is a power key connector for power circuits of home appliances, especially targeting gas appliances. With a clear clicking sound, contact insertion can be made easy. The double lock plate provides for complete loading of contacts. Locking levers are surrounded by walls, which protect levers and prevent tangling with wires. This connector is designed to release bubbles created by the process of potting, housing lances also help prevent tangling of wired contacts.

Features

  • Compact design with 19.4 mm mated height
  • Power circuit connector with 5.0 mm contact centerline
Technical specifications
Filter Property Value
Grid 4.95 mm
Contact type pin
Connection plating pre-tinned
contact surface tin-plated
Version socket header
Rated current 12 A
Rated voltage 250 V
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 2
Colour natural
Pin number 10 pole
Connection solder connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
