350213-1 | AMP

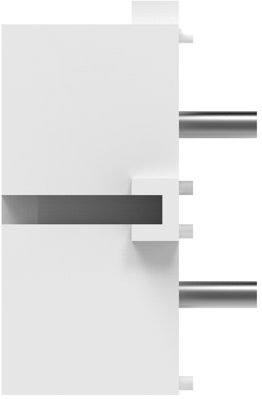

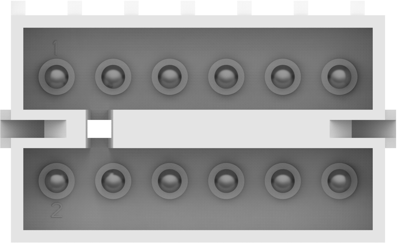

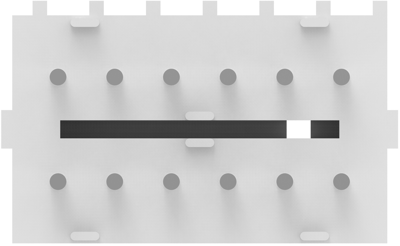

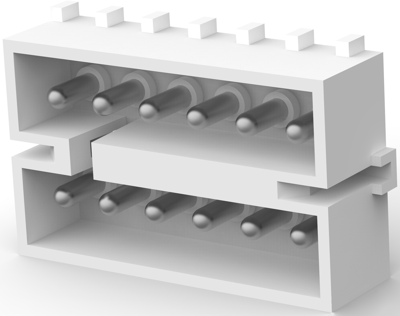

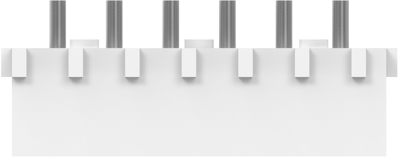

Pin header, 12 pole, pitch 4.95 mm, straight, natural, 350213-1
Unit Price (€ / pc.)
2.9155 € *
Available in 5 Days: 170 pcs. - if ordered today
PCB Connection System, 350213-1, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 12 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: natural
- Orientation: straight
- Number of positions: 12
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 12 A
- Centerline (Pitch): 4.95 mm
- Row-to-Row Spacing: 9.14 mm [0.36 in]
- Sealable: No
Technical specifications
| Number of rows | 2 | |
| Grid | 4.95 mm | |
| Orientation | straight | |
| Pin number | 12 pole | |
| Connection | solder pin | |
| Type of locking | Yes | |
| Colour | natural | |
| Rated current | 12 A | |
| Additional parts | equipped | |
| Contact type | pin | |
| Version | pin header | |
| Connection plating | pre-tinned | |
| contact surface | pre-tinned | |
| Rated voltage | 250 V |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | IN |
Compliance
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
