338095-6 | AMP

Plug housing, 6 pole, pitch 1.27 mm, straight, red, 338095-6

Order No.: 39P2059
EAN: 4099889978902
MPN:
338095-6
Series: Micro-MaTch

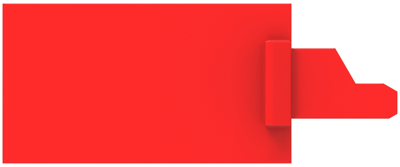

338095-6 AMP PCB Connection Systems Image 1

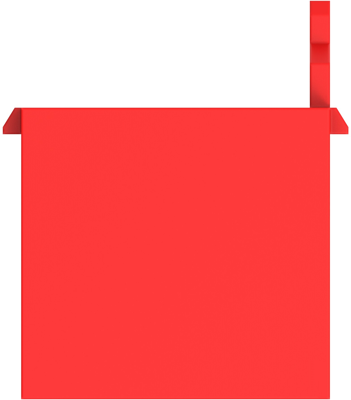

338095-6 AMP PCB Connection Systems Image 2

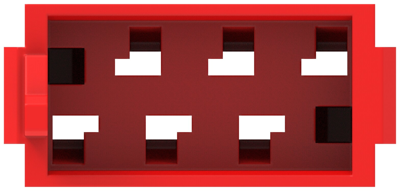

338095-6 AMP PCB Connection Systems Image 3

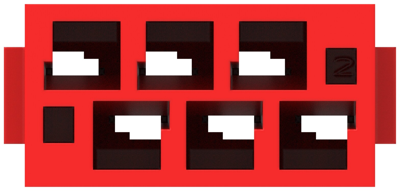

338095-6 AMP PCB Connection Systems Image 4

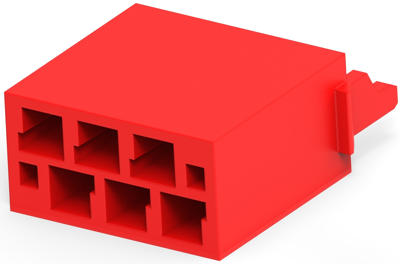

338095-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.6664 € *
Available in 5 Days: 17,793 pcs. - if ordered today
Total Price:
3.33 € *
Price list
Quantity
Price per unit*
5 pcs.
0.6664 €
10 pcs.
0.6188 €
25 pcs.
0.5712 €
50 pcs.
0.5236 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 338095-6, AMP

Wire-to-Board, Wire & Cable, 6 Position

Technical Data

  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT GF
  • Housing Color: red
  • Number of positions: 6
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 1.27 mm
  • Row-to-Row Spacing: 2 mm [0.059 in]
Technical specifications
Filter Property Value
Grid 1.27 mm
Contact type socket
Connection plating tin-plated
contact surface tin-plated
Version plug housing
Rated current 1.5 A
Rated voltage 100 V
Orientation straight
Additional parts unequipped
Number of rows 2
Colour red
Pin number 6 pole
Connection crimp connection
Logistics
Property Value
Country of origin TH
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
