338068-6 | AMP

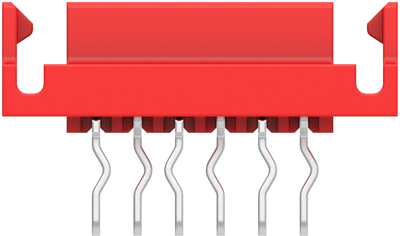

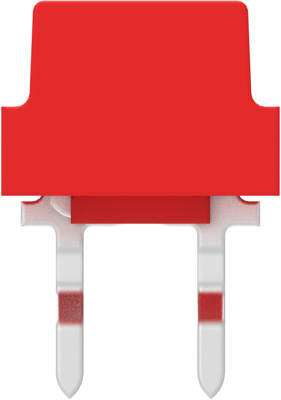

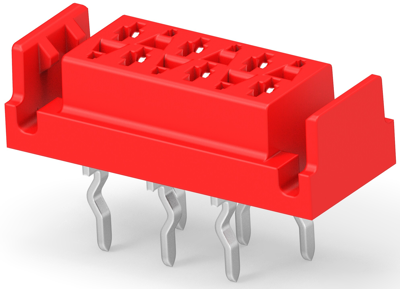

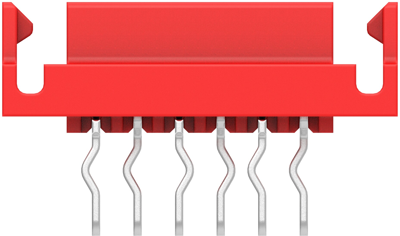

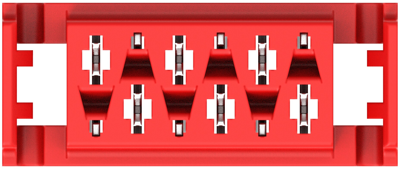

Socket housing, 6 pole, pitch 1.27 mm, straight, red, 338068-6
Unit Price (€ / pc.)
0.4165 € *
Available: 0 pcs.
Available in 5 Days: 2,500 pcs.
Leadtime: 38 Weeks **
Total Price:
1,041.25 € *
Price list
Quantity
Price per unit*
2500 pcs.
0.4165 €
5000 pcs.
0.3927 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 338068-6, AMP
Board-to-Board, Printed Circuit Board, Vertical, 6 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: PBT GF
- Housing Color: red
- Orientation: straight
- Number of positions: 6
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 1.27 mm
- Row-to-Row Spacing: 2 mm [0.059 in]
- PCB Mount Retention: With
Technical specifications
| Colour | red | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Rated current | 1 A | |
| Grid | 1.27 mm | |
| Connection plating | tin-plated | |
| Pin number | 6 pole | |
| Version | socket housing | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | PCB connection | |
| Contact type | socket | |
| Rated voltage | 100 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
