3-964951-2 | AMP

Socket housing, 2 pole, pitch 5 mm, straight, gray, 3-964951-2

Order No.: 35P4237
EAN: 4099889933192
MPN:
3-964951-2

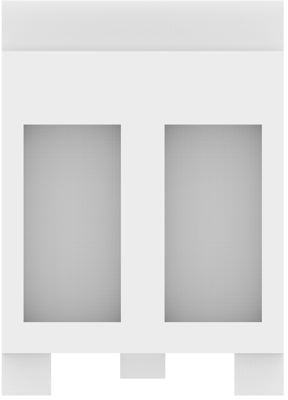

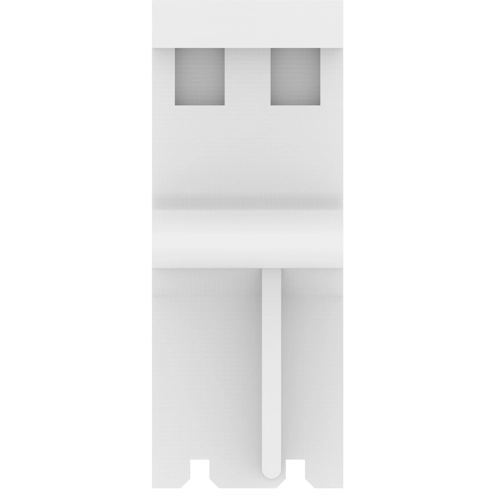

3-964951-2 AMP PCB Connection Systems Image 1

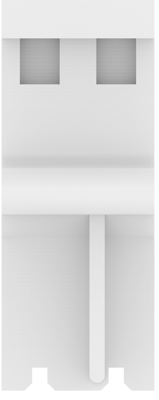

3-964951-2 AMP PCB Connection Systems Image 2

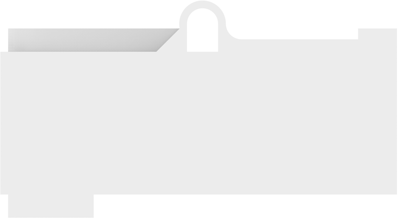

3-964951-2 AMP PCB Connection Systems Image 3

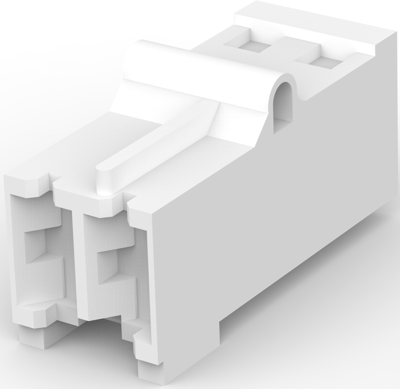

3-964951-2 AMP PCB Connection Systems Image 4

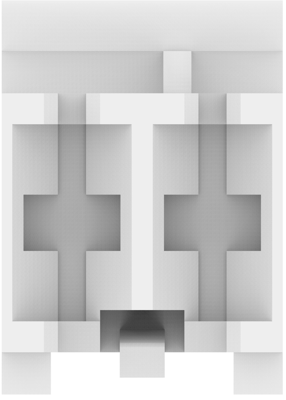

3-964951-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2701 € *
Standard delivery time from the manufacturer is: 21 Weeks
Total Price:
1,350.65 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.2701 €

PCB Connection System, 3-964951-2, AMP

Wire-to-Wire, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Tab
  • Housing Material: PA 6.6
  • Housing Color: gray
  • Orientation: straight
  • Number of positions: 2
  • Operating Temperature Range: -40 – 110 °C [-40 – 230 °F]
  • Rated current: 16 A
  • Centerline (Pitch): 5 mm
  • Row-to-Row Spacing: 5 mm [0.197 in]
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Colour gray
Type of locking Yes
Rated current 16 A
Grid 5 mm
Pin number 2 pole
Version socket housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type socket
Rated voltage 220 V
Number of rows 1
Logistics
Country of origin TW
Customs tariff number 85389091
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
