3-917809-3 | AMP

Plug housing, 6 pole, pitch 10.16 mm, straight, black, 3-917809-3

Order No.: 38P7385
EAN: 4099889976144
MPN:
3-917809-3
Series: DYNAMIC

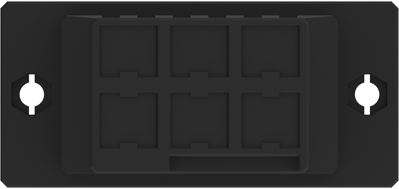

3-917809-3 AMP PCB Connection Systems Image 1

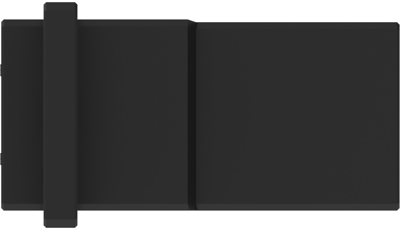

3-917809-3 AMP PCB Connection Systems Image 2

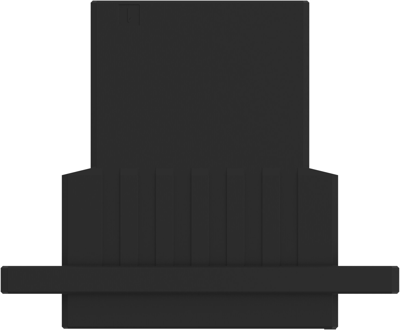

3-917809-3 AMP PCB Connection Systems Image 3

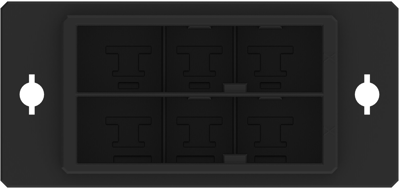

3-917809-3 AMP PCB Connection Systems Image 4

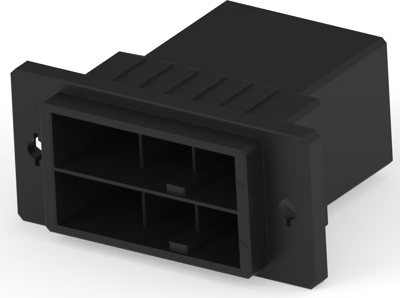

3-917809-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.5577 € *
Available in 5 Days: 6,479 pcs. - if ordered today
Total Price:
4.56 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5577 €
10 pcs.
4.2245 €
25 pcs.
3.9508 €
50 pcs.
3.5938 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-917809-3, AMP

Wire-to-Panel, Wire & Cable, 6 Position

Technical Data

  • Connector Mounting Type: Panel Mount
  • Contact Type: Tab
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 6
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 10.16 mm
  • Row-to-Row Spacing: 10.16 mm [0.399 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Contact type tab
Orientation straight
Rated voltage 630 V
Version plug housing
Rated current 30 A
Grid 10.16 mm
Colour black
Connection crimp connection
Number of rows 2
Pin number 6 pole
Logistics
Property Value
Country of origin TW
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
