3-917808-3 | AMP

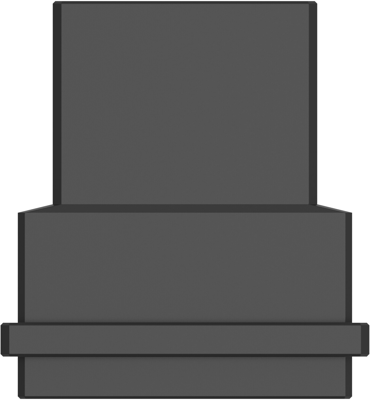

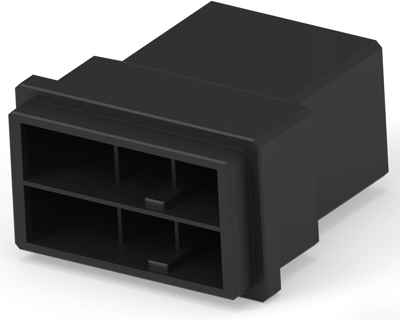

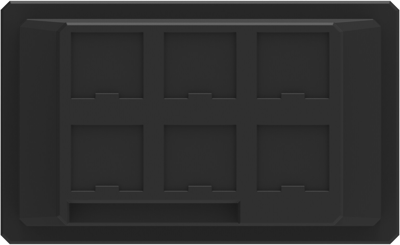

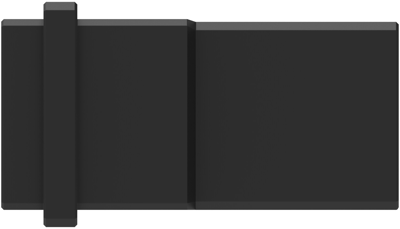

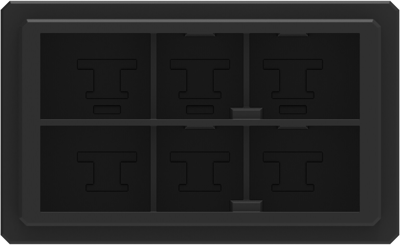

Plug housing, 6 pole, pitch 10.16 mm, straight, black, 3-917808-3
Unit Price (€ / pc.)
7.6993 € *
Standard delivery time from the manufacturer is: 29 Weeks
PCB Connection System, 3-917808-3, AMP
Wire-to-Wire, Wire & Cable, 6 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Tab
- Housing Material: Polyester GF
- Housing Color: black
- Number of positions: 6
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Centerline (Pitch): 10.16 mm
- Row-to-Row Spacing: 10.16 mm [0.399 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Rated voltage | 630 V | |
| Version | plug housing | |
| Connection | crimp connection | |
| Contact type | pin | |
| Additional parts | unequipped | |
| Rated current | 30 A | |
| Pin number | 6 pole | |
| Colour | black | |
| Orientation | straight | |
| Number of rows | 2 | |
| Grid | 10.16 mm |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85472000 |
Compliance
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
