3-917242-8 | AMP

Plug housing, 20 pole, pitch 5.08 mm, straight, black, 3-917242-8

Order No.: 38P7268
EAN: 4099889975758
MPN:
3-917242-8
Series: DYNAMIC

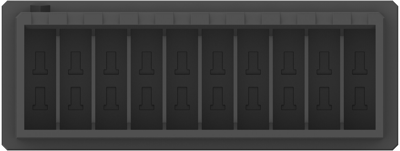

3-917242-8 AMP PCB Connection Systems Image 1

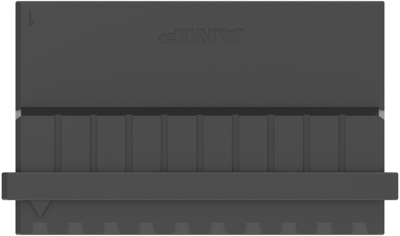

3-917242-8 AMP PCB Connection Systems Image 2

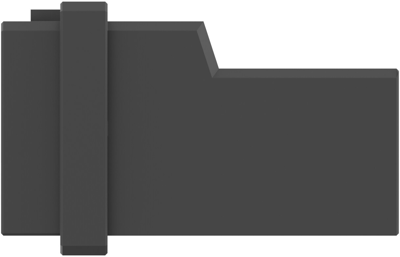

3-917242-8 AMP PCB Connection Systems Image 3

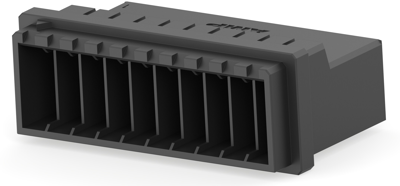

3-917242-8 AMP PCB Connection Systems Image 4

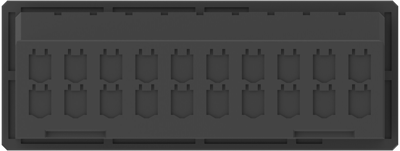

3-917242-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.4867 € *
Standard delivery time from the manufacturer is: 29 Weeks
Total Price:
3.49 € *
Price list
Quantity
Price per unit*
1 pcs.
3.4867 €
10 pcs.
3.1654 €
50 pcs.
2.8441 €
100 pcs.
2.5704 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-917242-8, AMP

Wire-to-Wire, Wire & Cable, 20 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Tab
  • Housing Material: Polyester GF
  • Housing Color: black
  • Number of positions: 20
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 5.08 mm
  • Row-to-Row Spacing: 5.08 mm [0.2 in]
  • Sealable: No
  • Contact Layout: Matrix
Technical specifications
Filter Property Value
Colour black
Type of locking Yes
Grid 5.08 mm
Pin number 20 pole
Version plug housing
Additional parts unequipped
Orientation straight
Connection crimp connection
Contact type tab
Rated voltage 600 V
Number of rows 2
Logistics
Property Value
Country of origin TW
Customs tariff number 85472000
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
