3-829868-8 | AMP

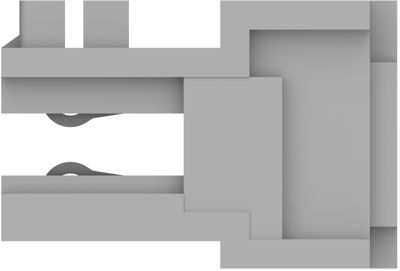

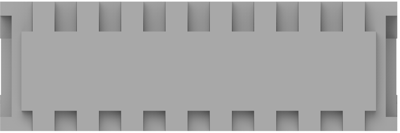

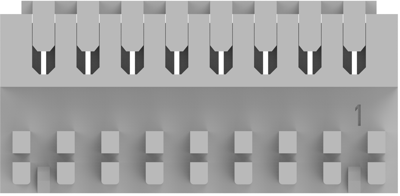

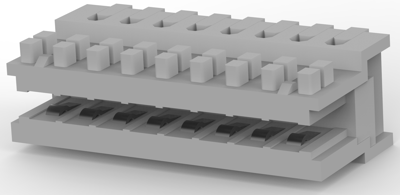

Socket header, 8 pole, pitch 2.5 mm, angled, gray, 3-829868-8
Card Edge Connector, 3-829868-8, AMP
Wire-to-Board, 2.5mm [ .098in ] Centerline, Insulation Displacement Crimp (IDC), Gray
Technical Data
- Connector & Housing Type: Receptacle
- Contact Base Material: CuSn4
- Card Slot Depth (mm): 5
- Connector Height: 7.35 mm
- Operating Temperature Range: -40 – 110 °C [ -40 – 230 °F ]
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| Contact type | socket | |
| Pin number | 8 pole | |
| Grid | 2.5 mm | |
| Connection | IDC connection | |
| Orientation | angled | |
| contact surface | tin-plated | |
| Rated voltage | 63 V | |
| Rated current | 2 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
