3-826925-6 | AMP

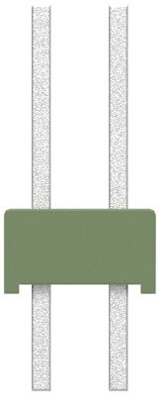

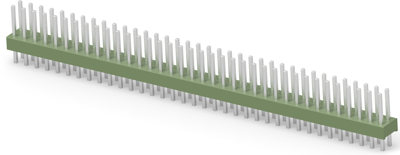

Pin header, 72 pole, pitch 2.54 mm, straight, green, 3-826925-6
Unit Price (€ / pc.)
3.8437 € *
Standard delivery time from the manufacturer is: 23 Weeks
PCB Connection System, 3-826925-6, AMP
Board-to-Board, Printed Circuit Board, Breakaway, Vertical, 72 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: PBT GV
- Housing Color: green
- Orientation: straight
- Number of positions: 72
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | green | |
| Breakable | Yes | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Rated current | 5 A | |
| Grid | 2.54 mm | |
| Connection plating | tin-plated | |
| Pin number | 72 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | solder pin | |
| Contact type | pin | |
| Number of rows | 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85366930 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
