3-826652-2 | AMP

Pin header, 32 pole, pitch 2.54 mm, angled, green, 3-826652-2

Order No.: 37P8036
EAN: 4099889970272
MPN:
3-826652-2
Series: AMPMODU

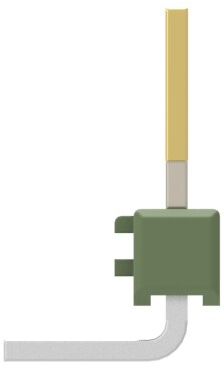

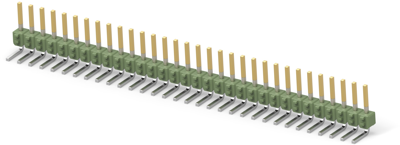

3-826652-2 AMP PCB Connection Systems Image 1
3-826652-2 AMP PCB Connection Systems Image 2
3-826652-2 AMP PCB Connection Systems Image 3
3-826652-2 AMP PCB Connection Systems Image 4
3-826652-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
5.3074 € *
Standard delivery time from the manufacturer is: 17 Weeks
Total Price:
5.31 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3074 €
10 pcs.
4.9266 €
25 pcs.
4.6053 €
50 pcs.
4.1888 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 3-826652-2, AMP

Board-to-Board, Printed Circuit Board, Breakaway, Right Angle, 32 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Contact Base Material: Phosphor Bronze
  • Housing Material: PBT GV
  • Housing Color: green
  • Orientation: angled
  • Number of positions: 32
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Filter Property Value
Connection solder pin
Number of rows 1
Orientation angled
Connection plating tin-plated
Type of locking Yes
Rated current 5 A
Grid 2.54 mm
Pin number 32 pole
Contact type pin
Additional parts equipped
contact surface gold-plated
Colour green
Breakable Yes
Version pin header
Logistics
Property Value
Customs tariff number 85366990
Country of origin TW
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
