3-825433-6 | AMP

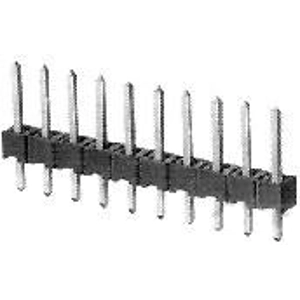

Pin header, 36 pole, pitch 2.54 mm, straight, green, 3-825433-6
Order No.: 37P8001
EAN: 4099889970074
MPN:
3-825433-6
Unit Price (€ / pc.)
2.7013 € *
Standard delivery time from the manufacturer is: 17 Weeks
PCB Connection System, 3-825433-6, AMP
Board-to-Board, Printed Circuit Board, Breakaway, Vertical, 36 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass, CuZn
- Housing Material: PBT GF, PBT GV
- Housing Color: green
- Orientation: straight
- Number of positions: 36
- Operating Temperature Range: -65 – 105 °C
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | gold-plated | |
| Pin number | 36 pole | |
| Breakable | Yes | |
| Type of locking | Yes | |
| Connection plating | tin-plated | |
| Orientation | straight | |
| Contact type | pin | |
| Grid | 2.54 mm | |
| Number of rows | 1 | |
| Additional parts | equipped | |
| Connection | PCB connection | |
| Rated current | 5 A | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
