3-794677-4 | AMP

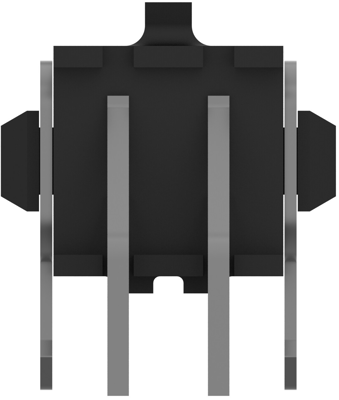

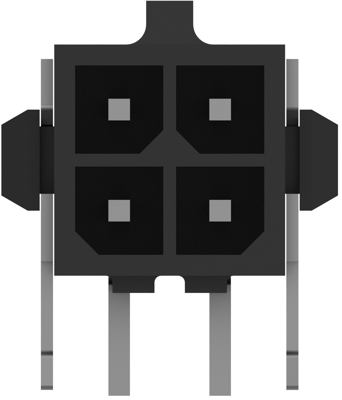

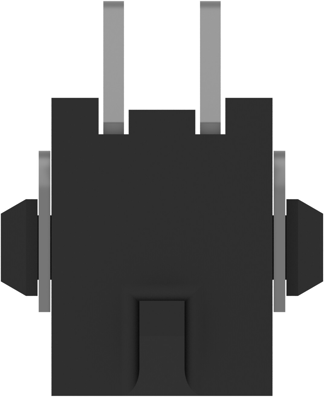

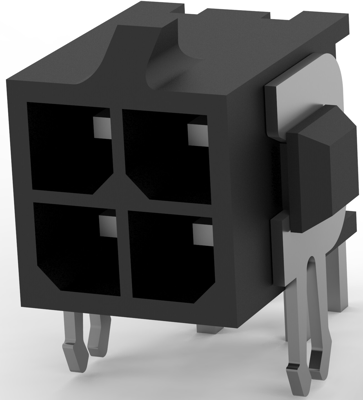

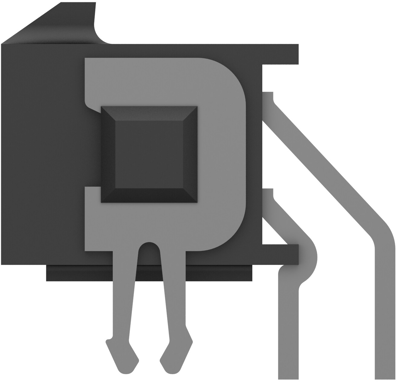

Pin header, 4 pole, pitch 3 mm, angled, black, 3-794677-4
Unit Price (€ / pc.)
1.9873 € *
Available in 5 Days: 3,907 pcs. - if ordered today
Total Price:
1.99 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9873 €
10 pcs.
1.8445 €
25 pcs.
1.7255 €
50 pcs.
1.5708 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 3-794677-4, AMP
Wire-to-Board, Printed Circuit Board, Right Angle, 4 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: High Temperature Nylon
- Housing Color: black
- Orientation: angled
- Number of positions: 4
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 3 mm
- Row-to-Row Spacing: 3 mm [0.118 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | angled | |
| Connection plating | tin-plated | |
| Colour | black | |
| Rated voltage | 250 V | |
| Connection | solder pin | |
| Pin number | 4 pole | |
| contact surface | tin-plated | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Grid | 3 mm | |
| Version | pin header | |
| Number of rows | 2 | |
| Contact type | pin | |
| Rated current | 5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
