3-794630-6 | AMP

Pin header, 6 pole, pitch 3 mm, straight, black, 3-794630-6

Order No.: 71F5774
EAN: 4099891010591
MPN:
3-794630-6
3-0794630-6

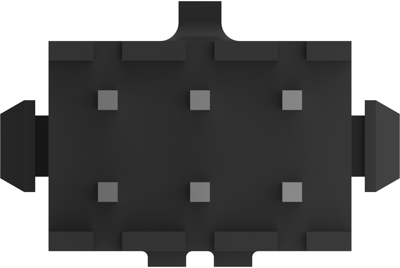

3-794630-6 AMP PCB Connection Systems Image 1

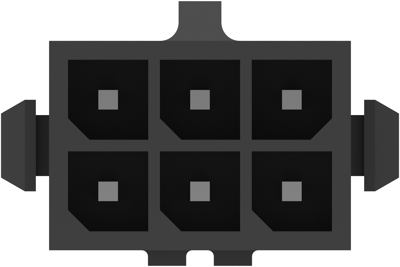

3-794630-6 AMP PCB Connection Systems Image 2

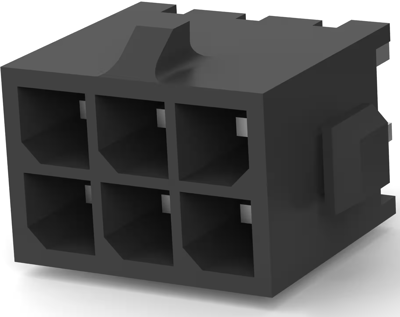

3-794630-6 AMP PCB Connection Systems Image 3

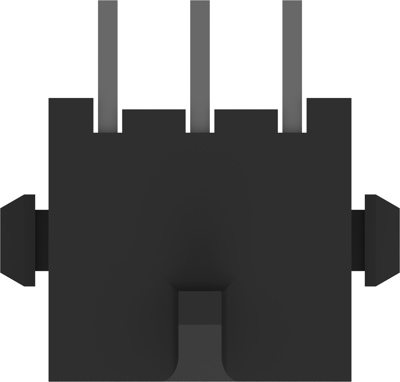

3-794630-6 AMP PCB Connection Systems Image 4

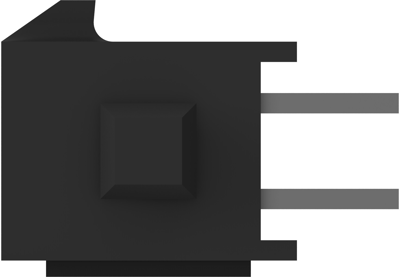

3-794630-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.19 € *
Available in 5 Days: 4,202 pcs. - if ordered today
Total Price:
3,743.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
3146 pcs.
1.19 €

Cable connectors, 2- to 24-pole, 3.0 mm grid, type TE Connectivity/AMP Micro Mate-N-Lok.

3.0 mm grid, single- and dual-row; Rated voltage: 250 V. Rated current: max. 5.0 A. Insulation resistance: min. 1000 Mohm. Contact resistance: max. 20 mohm. Insertion force (pro contact): 6.67 N. Operating temperatures: –40 to +105 °C. Certifications: UL, CSA.

PCB sockets, dual-row, straight, type ..-0794630.

Housing: Nylon, high temperature-resistant, flame retardant to UL 94 V-0. Contacts: tinned brass.

Technical attributes (type, number of poles, length): 3-0794630-6, 6-pole, L 13.0 mm

Technical specifications
Filter Property Value
Version pin header
Colour black
Type of locking Yes
Pin number 6 pole
Additional parts equipped
Connection solder pin
Connection plating tin-plated
Rated voltage 250 V
Contact type pin
Rated current 5 A
contact surface tin-plated
Orientation straight
Grid 3 mm
Number of rows 2
Logistics
Property Value
Country of origin IN
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
