3-794622-2 | AMP

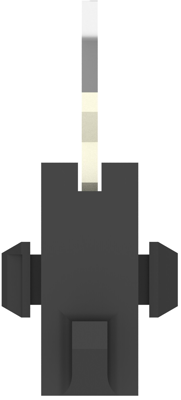

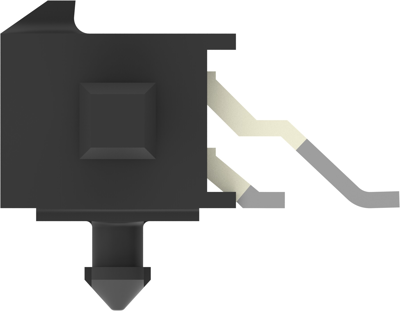

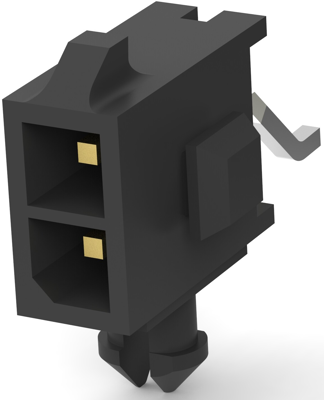

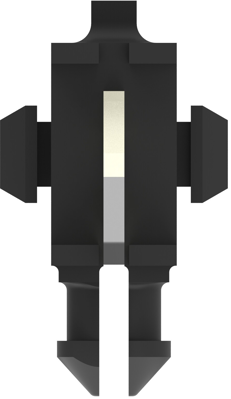

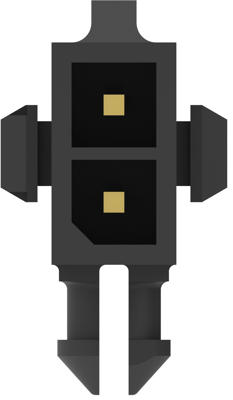

Pin header, 2 pole, pitch 3 mm, angled, black, 3-794622-2
Order No.: 34P9148
EAN: 4099889916911
MPN:
3-794622-2
Unit Price (€ / pc.)
1.5589 € *
Available: 0 pcs.
Leadtime: 22 Weeks **
Total Price:
1.56 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5589 €
10 pcs.
1.4161 €
50 pcs.
1.2852 €
100 pcs.
1.1424 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 3-794622-2, AMP
Wire-to-Board, Printed Circuit Board, Right Angle, 2 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: High Temperature Nylon
- Housing Color: black
- Orientation: angled
- Number of positions: 2
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 3 mm
- Row-to-Row Spacing: 3 mm [0.118 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Connection | SMD | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Stiftleiste | |
| Additional parts | bestückt | |
| Colour | schwarz | |
| Contact type | Stift | |
| contact surface | vergoldet | |
| Rated voltage | 250 V | |
| Rated current | 5 A | |
| Orientation | abgewinkelt | |
| Pin number | 2-polig | |
| Grid | 3 mm | |
| Type of locking | Ja |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85366910 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
