3-794615-8 | AMP

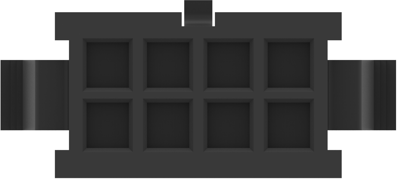

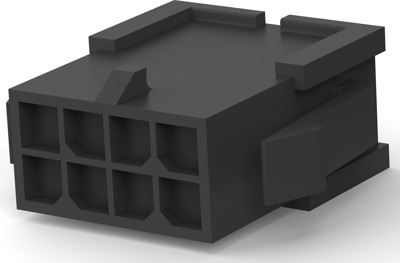

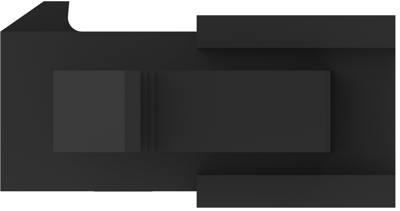

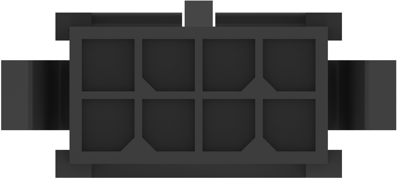

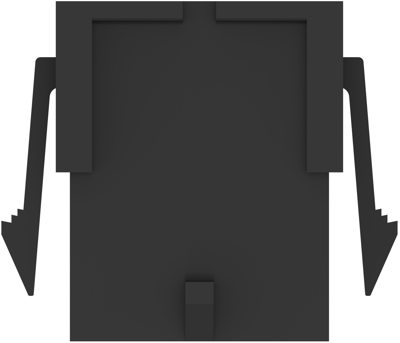

Plug housing, 8 pole, pitch 3 mm, straight, black, 3-794615-8
Unit Price (€ / pc.)
0.6902 € *
Available in 5 Days: 11,084 pcs. - if ordered today
Total Price:
0.69 € *
Price list
Quantity
Price per unit*
1 pcs.
0.6902 €
10 pcs.
0.6426 €
25 pcs.
0.5950 €
50 pcs.
0.5355 €
*incl. VAT plus shipping costs
Subject to prior sale
Power connector, 3-794615-8, AMP
The 3-794615-8 offers wire-to-wire and wire-to-board connections with contacts on a 3 mm centerline and current ratings up to 5 Amps max. This product includes the appliance, instrumentation, industrial machinery, home equipment, and security system industries.
Features
- Dual beam receptacle contact design for improved reliabilit
Applications
- Household appliances
- Lighting
- Factory automation
- Data storage
- Garage door opener
- Security system
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3 mm | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | pin | |
| Rated current | 5 A | |
| Version | plug housing | |
| Pin number | 8 pole | |
| Type of locking | Yes | |
| Number of rows | 2 | |
| Colour | black | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
